Powersafe

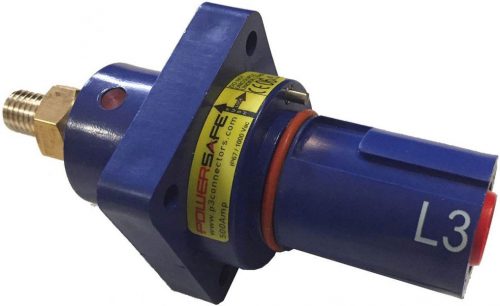

Power Safely with Powersafe Connectors from PHASE 3


With the increased demand for temporary high power systems for entertainment and industrial applications, you need to focus on safety and reliability. Powersafe Connectors from PHASE 3 meet those needs – and more. They are the only finger safe cam connectors that are both UL and CE listed. You can use them in the United States AND Europe. No extra connectors needed when you travel abroad. And because they are finger safe, you can power up Powersafe Connectors without the worry of anything getting energized. The Powersafe series, which is based on a mechanically keyed and locked system, connects with single and three phase high current power circuits for added versatility.

Connect with An Industry Leader


These single pole connectors pave the way when it comes to safety and technical capability. That’s why we partnered with the manufacturer to be the North American distributor. Powersafe’s rugged construction and reliability has been tested under some of the harshest environments across the globe, including the oil fields of Canada and data centers in the Arctic Circle. They have proven themselves to withstand the tests again and again, making them the ideal choice for the conventions, outdoor events, theatres, arenas, film and broadcast studios, and generator and service tie-ins.

Standard Safety Features Include:



  • Secondary key locking system to reduce the risk of accidental contact

  • Locking mechanism to prevent accidental disconnection under load

  • Finger-proof contacts to prevent access to electrical contacts when uncoupled (M & F)

  • IP67 ingress protection

  • Flame retardant (UL94-V0)

  • Color coded and mechanically keyed to prevent connection errors

  • High impact body and high temperature resistant material


Additional Specifications



  • Available in cable and panel-mount formats with crimp or screw contacts

  • Rated at 500A and 800A for single core cables from 25mm to 300mm CSA

  • Multipoint, self-wiping contact area

  • Integral cable strain relief

  • Operating Voltage – 1000V AC

  • Surge Current – 75kA

  • Short Circuit Rating – Up to 35.5kA

  • Metric EN compliant cable glands

  • Daisy chain hook-up system

  • Rubber hand grip

  • Rubber protective caps to protect from moisture, dirt and abrasion

  • No special tools required for assembly


Learn more about how Powersafe Connectors can make you connections easier and safer.

Our Product Line for

X

Powersafe

Download Product PDFdownload pdf

  • 1001-01-02-01-617

  • Powersafe Removal Key
1001-01-02-01-617

Powersafe Removal Key

X

Powersafe

Download Product PDFdownload pdf

  • ULPS001 = SPS-E-GN-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.4 kg
    Key E
    Colour GN, Green
    Contact 455A, T5
ULPS001 = SPS-E-GN-T5-UL

455A M12 Threaded Post Termination
Weight 0.4 kg
Key E
Colour GN, Green
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPS010 = SPS-N-BK-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.4 kg
    Key N
    Colour BK, Black
    Contact 455A, T5
ULPS010 = SPS-N-BK-T5-UL

455A M12 Threaded Post Termination
Weight 0.4 kg
Key N
Colour BK, Black
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPS006 = SPS-N-BL-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.4 kg
    Key N
    Colour BL, Blue
    Contact 455A, T5
ULPS006 = SPS-N-BL-T5-UL

455A M12 Threaded Post Termination
Weight 0.4 kg
Key N
Colour BL, Blue
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPS007 = SPS-1-BN-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 1
    Colour BN, Brown
    Contact 455A, T5
ULPS007 = SPS-1-BN-T5-UL

455A M12 Threaded Post Termination
Weight 0.4 kg
Key 1
Colour BN, Brown
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPS002 = SPS-N-WH-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.4 kg
    Key N
    Colour WH, White
    Contact 455A, T5
ULPS002 = SPS-N-WH-T5-UL

455A M12 Threaded Post Termination
Weight 0.4 kg
Key N
Colour WH, White
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPS003 = SPS-1-BK-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 1
    Colour BK, Black
    Contact 455A, T5
ULPS003 = SPS-1-BK-T5-UL

455A M12 Threaded Post Termination
Weight 0.4 kg
Key 1
Colour BK, Black
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPS011 = SPS-1-R-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 1
    Colour R, Red
    Contact 455A, T5
ULPS011 = SPS-1-R-T5-UL

455A M12 Threaded Post Termination
Weight 0.4 kg
Key 1
Colour R, Red
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPS013 = SPS-2-WH-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 2
    Colour WH, White
    Contact 455A, T5
ULPS013 = SPS-2-WH-T5-UL

455A M12 Threaded Post Termination
Weight 0.4 kg
Key 2
Colour WH, White
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPS008 = SPS-2-BK-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 2
    Colour BK, Black
    Contact 455A, T5
ULPS008 = SPS-2-BK-T5-UL

455A M12 Threaded Post Termination
Weight 0.4 kg
Key 2
Colour BK, Black
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPS012 = SPS-2-Y-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 2
    Colour Y, Yellow
    Contact 455A, T5
ULPS012 = SPS-2-Y-T5-UL

455A M12 Threaded Post Termination
Weight 0.4 kg
Key 2
Colour Y, Yellow
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPS004 = SPS-2-R-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 2
    Colour R, Red
    Contact 455A, T5
ULPS004 = SPS-2-R-T5-UL

455A M12 Threaded Post Termination
Weight 0.4 kg
Key 2
Colour R, Red
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPS009 = SPS-3-GY-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 3
    Colour Grey, GY
    Contact 455A, T5
ULPS009 = SPS-3-GY-T5-UL

455A M12 Threaded Post Termination
Weight 0.4 kg
Key 3
Colour Grey, GY
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPS016 = SPS-E-GN-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.4 kg
    Key E
    Colour GN, Green
    Contact 600A, T8
ULPS016 = SPS-E-GN-T8-UL

600A M12 Threaded Post Termination
Weight 0.4 kg
Key E
Colour GN, Green
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPS025 = SPS-N-BK-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.4 kg
    Key N
    Colour BK, Black
    Contact 600A, T8
ULPS025 = SPS-N-BK-T8-UL

600A M12 Threaded Post Termination
Weight 0.4 kg
Key N
Colour BK, Black
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPS021 = SPS-N-BL-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.4 kg
    Key N
    Colour BL, Blue
    Contact 600A, T8
ULPS021 = SPS-N-BL-T8-UL

600A M12 Threaded Post Termination
Weight 0.4 kg
Key N
Colour BL, Blue
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPS022 = SPS-1-BN-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 1
    Colour BN, Brown
    Contact 600A, T8
ULPS022 = SPS-1-BN-T8-UL

600A M12 Threaded Post Termination
Weight 0.4 kg
Key 1
Colour BN, Brown
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPS017 = SPS-N-WH-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.4 kg
    Key N
    Colour WH, White
    Contact 600A, T8
ULPS017 = SPS-N-WH-T8-UL

600A M12 Threaded Post Termination
Weight 0.4 kg
Key N
Colour WH, White
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPS018 = SPS-1-BK-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 1
    Colour BK, Black
    Contact 600A, T8
ULPS018 = SPS-1-BK-T8-UL

600A M12 Threaded Post Termination
Weight 0.4 kg
Key 1
Colour BK, Black
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPS026 = SPS-1-R-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 1
    Colour R, Red
    Contact 600A, T8
ULPS026 = SPS-1-R-T8-UL

600A M12 Threaded Post Termination
Weight 0.4 kg
Key 1
Colour R, Red
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPS023 = SPS-2-BK-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 2
    Colour BK, Black
    Contact 600A, T8
ULPS023 = SPS-2-BK-T8-UL

600A M12 Threaded Post Termination
Weight 0.4 kg
Key 2
Colour BK, Black
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPS028 = SPS-2-WH-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 2
    Colour WH, White
    Contact 600A, T8
ULPS028 = SPS-2-WH-T8-UL

600A M12 Threaded Post Termination
Weight 0.4 kg
Key 2
Colour WH, White
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPS027 = SPS-2-Y-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 2
    Colour Y, Yellow
    Contact 600A, T8
ULPS027 = SPS-2-Y-T8-UL

600A M12 Threaded Post Termination
Weight 0.4 kg
Key 2
Colour Y, Yellow
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPS019 = SPS-2-R-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 2
    Colour R, Red
    Contact 600A, T8
ULPS019 = SPS-2-R-T8-UL

600A M12 Threaded Post Termination
Weight 0.4 kg
Key 2
Colour R, Red
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPS024 = SPS-3-GY-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 3
    Colour Grey, GY
    Contact 600A, T8
ULPS024 = SPS-3-GY-T8-UL

600A M12 Threaded Post Termination
Weight 0.4 kg
Key 3
Colour Grey, GY
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPS020 = SPS-3-BL-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 3
    Colour BL, Blue
    Contact 600A, T8
ULPS020 = SPS-3-BL-T8-UL

600A M12 Threaded Post Termination
Weight 0.4 kg
Key 3
Colour BL, Blue
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPS005 = SPS-3-BL-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.4 kg
    Key 3
    Colour BL, Blue
    Contact 455A, T5
ULPS005 = SPS-3-BL-T5-UL

455A M12 Threaded Post Termination
Weight 0.4 kg
Key 3
Colour BL, Blue
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPD006 = SPD-N-BL-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.35 kg
    Key N
    Colour BL, Blue
    Contact 455A, T5
ULPD006 = SPD-N-BL-T5-UL

455A M12 Threaded Post Termination
Weight 0.35 kg
Key N
Colour BL, Blue
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPD002 = SPD-N-WH-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.35 kg
    Key N
    Colour WH, White
    Contact 455A, T5
ULPD002 = SPD-N-WH-T5-UL

455A M12 Threaded Post Termination
Weight 0.35 kg
Key N
Colour WH, White
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPD010 = SPD-N-BK-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.35 kg
    Key N
    Colour BK, Black
    Contact 455A, T5
ULPD010 = SPD-N-BK-T5-UL

455A M12 Threaded Post Termination
Weight 0.35 kg
Key N
Colour BK, Black
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPD011 = SPD-1-R-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 1
    Colour R, Red
    Contact 455A, T5
ULPD011 = SPD-1-R-T5-UL

455A M12 Threaded Post Termination
Weight 0.35 kg
Key 1
Colour R, Red
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPD007 = SPD-1-BN-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 1
    Colour BN, Brown
    Contact 455A, T5
ULPD007 = SPD-1-BN-T5-UL

455A M12 Threaded Post Termination
Weight 0.35 kg
Key 1
Colour BN, Brown
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPD008 = SPD-2-BK-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 2
    Colour BK, Black
    Contact 455A, T5
ULPD008 = SPD-2-BK-T5-UL

455A M12 Threaded Post Termination
Weight 0.35 kg
Key 2
Colour BK, Black
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPD003 = SPD-1-BK-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 1
    Colour BK, Black
    Contact 455A, T5
ULPD003 = SPD-1-BK-T5-UL

455A M12 Threaded Post Termination
Weight 0.35 kg
Key 1
Colour BK, Black
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPD004 = SPD-2-R-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 2
    Colour R, Red
    Contact 455A, T5
ULPD004 = SPD-2-R-T5-UL

455A M12 Threaded Post Termination
Weight 0.35 kg
Key 2
Colour R, Red
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPD013 = SPD-2-WH-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 2
    Colour WH, White
    Contact 455A, T5
ULPD013 = SPD-2-WH-T5-UL

455A M12 Threaded Post Termination
Weight 0.35 kg
Key 2
Colour WH, White
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPD012 = SPD-2-Y-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 2
    Colour Y, Yellow
    Contact 455A, T5
ULPD012 = SPD-2-Y-T5-UL

455A M12 Threaded Post Termination
Weight 0.35 kg
Key 2
Colour Y, Yellow
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPD009 = SPD-3-GY-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 3
    Colour Grey, GY
    Contact 455A, T5
ULPD009 = SPD-3-GY-T5-UL

455A M12 Threaded Post Termination
Weight 0.35 kg
Key 3
Colour Grey, GY
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPD005 = SPD-3-BL-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 3
    Colour BL, Blue
    Contact 455A, T5
ULPD005 = SPD-3-BL-T5-UL

455A M12 Threaded Post Termination
Weight 0.35 kg
Key 3
Colour BL, Blue
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULPD021 = SPD-N-BL-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.35 kg
    Key N
    Colour BL, Blue
    Contact 600A, T8
ULPD021 = SPD-N-BL-T8-UL

600A M12 Threaded Post Termination
Weight 0.35 kg
Key N
Colour BL, Blue
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPD016 = SPD-E-GN-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.35 kg
    Key E
    Colour GN, Green
    Contact 600A, T8
ULPD016 = SPD-E-GN-T8-UL

600A M12 Threaded Post Termination
Weight 0.35 kg
Key E
Colour GN, Green
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPD017 = SPD-N-WH-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.35 kg
    Key N
    Colour WH, White
    Contact 600A, T8
ULPD017 = SPD-N-WH-T8-UL

600A M12 Threaded Post Termination
Weight 0.35 kg
Key N
Colour WH, White
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPD025 = SPD-N-BK-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.35 kg
    Key N
    Colour BK, Black
    Contact 600A, T8
ULPD025 = SPD-N-BK-T8-UL

600A M12 Threaded Post Termination
Weight 0.35 kg
Key N
Colour BK, Black
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPD026 = SPD-1-R-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 1
    Colour R, Red
    Contact 600A, T8
ULPD026 = SPD-1-R-T8-UL

600A M12 Threaded Post Termination
Weight 0.35 kg
Key 1
Colour R, Red
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPD023 = SPD-2-BK-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 2
    Colour BK, Black
    Contact 600A, T8
ULPD023 = SPD-2-BK-T8-UL

600A M12 Threaded Post Termination
Weight 0.35 kg
Key 2
Colour BK, Black
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPD022 = SPD-1-BN-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 1
    Colour BN, Brown
    Contact 600A, T8
ULPD022 = SPD-1-BN-T8-UL

600A M12 Threaded Post Termination
Weight 0.35 kg
Key 1
Colour BN, Brown
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPD018 = SPD-1-BK-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 1
    Colour BK, Black
    Contact 600A, T8
ULPD018 = SPD-1-BK-T8-UL

600A M12 Threaded Post Termination
Weight 0.35 kg
Key 1
Colour BK, Black
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPD019 = SPD-2-R-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 2
    Colour R, Red
    Contact 600A, T8
ULPD019 = SPD-2-R-T8-UL

600A M12 Threaded Post Termination
Weight 0.35 kg
Key 2
Colour R, Red
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPD028 = SPD-2-WH-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 2
    Colour WH, White
    Contact 600A, T8
ULPD028 = SPD-2-WH-T8-UL

600A M12 Threaded Post Termination
Weight 0.35 kg
Key 2
Colour WH, White
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPD024 = SPD-3-GY-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 3
    Colour Grey, GY
    Contact 600A, T8
ULPD024 = SPD-3-GY-T8-UL

600A M12 Threaded Post Termination
Weight 0.35 kg
Key 3
Colour Grey, GY
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPD027 = SPD-2-Y-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 2
    Colour Y, Yellow
    Contact 600A, T8
ULPD027 = SPD-2-Y-T8-UL

600A M12 Threaded Post Termination
Weight 0.35 kg
Key 2
Colour Y, Yellow
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPD020 = SPD-3-BL-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.35 kg
    Key 3
    Colour BL, Blue
    Contact 600A, T8
ULPD020 = SPD-3-BL-T8-UL

600A M12 Threaded Post Termination
Weight 0.35 kg
Key 3
Colour BL, Blue
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULPD001 = SPD-E-GN-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.35 kg
    Key E
    Colour GN, Green
    Contact 455A, T5
ULPD001 = SPD-E-GN-T5-UL

455A M12 Threaded Post Termination
Weight 0.35 kg
Key E
Colour GN, Green
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULLS001 = SLS-E-GN-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.54 kg
    Key E
    Colour GN, Green
    Contact S120
    Gland M40A
ULLS001 = SLS-E-GN-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.54 kg
Key E
Colour GN, Green
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLS010 = SLS-N-BK-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.54 kg
    Key N
    Colour BK, Black
    Contact S120
    Gland M40A
ULLS010 = SLS-N-BK-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.54 kg
Key N
Colour BK, Black
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLS006 = SLS-N-BL-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.54 kg
    Key N
    Colour BL, Blue
    Contact S120
    Gland M40A
ULLS006 = SLS-N-BL-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.54 kg
Key N
Colour BL, Blue
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLS002 = SLS-N-WH-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.54 kg
    Key N
    Colour WH, White
    Contact S120
    Gland M40A
ULLS002 = SLS-N-WH-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.54 kg
Key N
Colour WH, White
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLS007 = SLS-1-BN-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.54 kg
    Key 1
    Colour BN, Brown
    Contact S120
    Gland M40A
ULLS007 = SLS-1-BN-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.54 kg
Key 1
Colour BN, Brown
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLS011 = SLS-1-R-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.54 kg
    Key 1
    Colour R, Red
    Contact S120
    Gland M40A
ULLS011 = SLS-1-R-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.54 kg
Key 1
Colour R, Red
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLS003 = SLS-1-BK-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.54 kg
    Key 1
    Colour BK, Black
    Contact S120
    Gland M40A
ULLS003 = SLS-1-BK-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.54 kg
Key 1
Colour BK, Black
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLS008 = SLS-2-BK-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.54 kg
    Key 2
    Colour BK, Black
    Contact S120
    Gland M40A
ULLS008 = SLS-2-BK-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.54 kg
Key 2
Colour BK, Black
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLS013 = SLS-2-WH-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.54 kg
    Key 2
    Colour WH, White
    Contact S120
    Gland M40A
ULLS013 = SLS-2-WH-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.54 kg
Key 2
Colour WH, White
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLS004 = SLS-2-R-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.54 kg
    Key 2
    Colour R, Red
    Contact S120
    Gland M40A
ULLS004 = SLS-2-R-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.54 kg
Key 2
Colour R, Red
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLS012 = SLS-2-Y-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.54 kg
    Key 2
    Colour Y, Yellow
    Contact S120
    Gland M40A
ULLS012 = SLS-2-Y-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.54 kg
Key 2
Colour Y, Yellow
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLS009 = SLS-3-GY-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.54 kg
    Key 3
    Colour Grey, GY
    Contact S120
    Gland M40A
ULLS009 = SLS-3-GY-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.54 kg
Key 3
Colour Grey, GY
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLS005 = SLS-3-BL-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.54 kg
    Key 3
    Colour BL, Blue
    Contact S120
    Gland M40A
ULLS005 = SLS-3-BL-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.54 kg
Key 3
Colour BL, Blue
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • SLS0015 = SLS-E-GN-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.58 kg
    Key E
    Colour GN, Green
    Contact C240
    Gland M40B
SLS0015 = SLS-E-GN-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.58 kg
Key E
Colour GN, Green
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLS0016 = SLS-N-BK-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.58 kg
    Key N
    Colour BK, Black
    Contact C240
    Gland M40B
SLS0016 = SLS-N-BK-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.58 kg
Key N
Colour BK, Black
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLS0011 = SLS-N-BL-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.58 kg
    Key N
    Colour BL, Blue
    Contact C240
    Gland M40B
SLS0011 = SLS-N-BL-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.58 kg
Key N
Colour BL, Blue
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLS0012 = SLS-1-BN-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.58 kg
    Key 1
    Colour BN, Brown
    Contact C240
    Gland M40B
SLS0012 = SLS-1-BN-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.58 kg
Key 1
Colour BN, Brown
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLS0165 = SLS-N-WH-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.58 kg
    Key N
    Colour WH, White
    Contact C240
    Gland M40B
SLS0165 = SLS-N-WH-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.58 kg
Key N
Colour WH, White
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLS0017 = SLS-1-R-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.58 kg
    Key 1
    Colour R, Red
    Contact C240
    Gland M40B
SLS0017 = SLS-1-R-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.58 kg
Key 1
Colour R, Red
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLS0166 = SLS-1-BK-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.58 kg
    Key 1
    Colour BK, Black
    Contact C240
    Gland M40B
SLS0166 = SLS-1-BK-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.58 kg
Key 1
Colour BK, Black
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLS0013 = SLS-2-BK-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.58 kg
    Key 2
    Colour BK, Black
    Contact C240
    Gland M40B
SLS0013 = SLS-2-BK-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.58 kg
Key 2
Colour BK, Black
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLS0019 = SLS-2-WH-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.58 kg
    Key 2
    Colour WH, White
    Contact C240
    Gland M40B
SLS0019 = SLS-2-WH-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.58 kg
Key 2
Colour WH, White
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLS0167 = SLS-2-R-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.58 kg
    Key 2
    Colour R, Red
    Contact C240
    Gland M40B
SLS0167 = SLS-2-R-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.58 kg
Key 2
Colour R, Red
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLS0018 = SLS-2-Y-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.58 kg
    Key 2
    Colour Y, Yellow
    Contact C240
    Gland M40B
SLS0018 = SLS-2-Y-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.58 kg
Key 2
Colour Y, Yellow
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLS0014 = SLS-3-GY-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.58 kg
    Key 3
    Colour Grey, GY
    Contact C240
    Gland M40B
SLS0014 = SLS-3-GY-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.58 kg
Key 3
Colour Grey, GY
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLS0020 = SLS-3-BL-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.58 kg
    Key 3
    Colour BL, Blue
    Contact C240
    Gland M40B
SLS0020 = SLS-3-BL-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.58 kg
Key 3
Colour BL, Blue
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • ULLD001 = SLD-E-GN-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.53 kg
    Key E
    Colour GN, Green
    Contact S120
    Gland M40A
ULLD001 = SLD-E-GN-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.53 kg
Key E
Colour GN, Green
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLD006 = SLD-N-BL-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.53 kg
    Key N
    Colour BL, Blue
    Contact S120
    Gland M40A
ULLD006 = SLD-N-BL-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.53 kg
Key N
Colour BL, Blue
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLD010 = SLD-N-BK-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.53 kg
    Key N
    Colour BK, Black
    Contact S120
    Gland M40A
ULLD010 = SLD-N-BK-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.53 kg
Key N
Colour BK, Black
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLD002 = SLD-N-WH-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.53 kg
    Key N
    Colour WH, White
    Contact S120
    Gland M40A
ULLD002 = SLD-N-WH-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.53 kg
Key N
Colour WH, White
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLD007 = SLD-1-BN-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.53 kg
    Key 1
    Colour BN, Brown
    Contact S120
    Gland M40A
ULLD007 = SLD-1-BN-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.53 kg
Key 1
Colour BN, Brown
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLD011 = SLD-1-R-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.53 kg
    Key 1
    Colour R, Red
    Contact S120
    Gland M40A
ULLD011 = SLD-1-R-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.53 kg
Key 1
Colour R, Red
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLD008 = SLD-2-BK-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.53 kg
    Key 2
    Colour BK, Black
    Contact S120
    Gland M40A
ULLD008 = SLD-2-BK-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.53 kg
Key 2
Colour BK, Black
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLD003 = SLD-1-BK-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.53 kg
    Key 1
    Colour BK, Black
    Contact S120
    Gland M40A
ULLD003 = SLD-1-BK-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.53 kg
Key 1
Colour BK, Black
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLD013 = SLD-2-WH-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.53 kg
    Key 2
    Colour WH, White
    Contact S120
    Gland M40A
ULLD013 = SLD-2-WH-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.53 kg
Key 2
Colour WH, White
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLD004 = SLD-2-R-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.53 kg
    Key 2
    Colour R, Red
    Contact S120
    Gland M40A
ULLD004 = SLD-2-R-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.53 kg
Key 2
Colour R, Red
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLD012 = SLD-2-Y-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.53 kg
    Key 2
    Colour Y, Yellow
    Contact S120
    Gland M40A
ULLD012 = SLD-2-Y-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.53 kg
Key 2
Colour Y, Yellow
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULLD009 = SLD-3-GY-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.53 kg
    Key 3
    Colour Grey, GY
    Contact S120
    Gland M40A
ULLD009 = SLD-3-GY-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.53 kg
Key 3
Colour Grey, GY
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • SLD0011 = SLD-N-BL-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.55 kg
    Key N
    Colour BL, Blue
    Contact C240
    Gland M40B
SLD0011 = SLD-N-BL-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.55 kg
Key N
Colour BL, Blue
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLD0015 = SLD-E-GN-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.55 kg
    Key E
    Colour GN, Green
    Contact C240
    Gland M40B
SLD0015 = SLD-E-GN-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.55 kg
Key E
Colour GN, Green
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLD0163 = SLD-N-WH-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.55 kg
    Key N
    Colour WH, White
    Contact C240
    Gland M40B
SLD0163 = SLD-N-WH-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.55 kg
Key N
Colour WH, White
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLD0016 = SLD-N-BK-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.55 kg
    Key N
    Colour BK, Black
    Contact C240
    Gland M40B
SLD0016 = SLD-N-BK-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.55 kg
Key N
Colour BK, Black
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLD0012 = SLD-1-BN-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.55 kg
    Key 1
    Colour BN, Brown
    Contact C240
    Gland M40B
SLD0012 = SLD-1-BN-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.55 kg
Key 1
Colour BN, Brown
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLD0017 = SLD-1-R-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.55 kg
    Key 1
    Colour R, Red
    Contact C240
    Gland M40B
SLD0017 = SLD-1-R-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.55 kg
Key 1
Colour R, Red
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLD0164 = SLD-1-BK-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.55 kg
    Key 1
    Colour BK, Black
    Contact C240
    Gland M40B
SLD0164 = SLD-1-BK-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.55 kg
Key 1
Colour BK, Black
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLD0019 = SLD-2-WH-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.55 kg
    Key 2
    Colour WH, White
    Contact C240
    Gland M40B
SLD0019 = SLD-2-WH-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.55 kg
Key 2
Colour WH, White
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLD0165 = SLD-2-R-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.55 kg
    Key 2
    Colour R, Red
    Contact C240
    Gland M40B
SLD0165 = SLD-2-R-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.55 kg
Key 2
Colour R, Red
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLD0014 = SLD-3-GY-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.55 kg
    Key 3
    Colour Grey, GY
    Contact C240
    Gland M40B
SLD0014 = SLD-3-GY-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.55 kg
Key 3
Colour Grey, GY
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLD0018 = SLD-2-Y-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.55 kg
    Key 2
    Colour Y, Yellow
    Contact C240
    Gland M40B
SLD0018 = SLD-2-Y-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.55 kg
Key 2
Colour Y, Yellow
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SLD0020 = SLD-3-BL-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.55 kg
    Key 3
    Colour BL, Blue
    Contact C240
    Gland M40B
SLD0020 = SLD-3-BL-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.55 kg
Key 3
Colour BL, Blue
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • ULLD005 = SLD-3-BL-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.53 kg
    Key 3
    Colour BL, Blue
    Contact S120
    Gland M40A
ULLD005 = SLD-3-BL-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.53 kg
Key 3
Colour BL, Blue
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS06 = RPS-N-BL-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.42 kg
    Key N
    Colour BL, Blue
    Contact 455A, T5
ULRPS06 = RPS-N-BL-T5-UL

455A M12 Threaded Post Termination
Weight 0.42 kg
Key N
Colour BL, Blue
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS01 = RPS-E-GN-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.42 kg
    Key E
    Colour GN, Green
    Contact 455A, T5
ULRPS01 = RPS-E-GN-T5-UL

455A M12 Threaded Post Termination
Weight 0.42 kg
Key E
Colour GN, Green
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS02 = RPS-N-WH-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.42 kg
    Key N
    Colour WH, White
    Contact 455A, T5
ULRPS02 = RPS-N-WH-T5-UL

455A M12 Threaded Post Termination
Weight 0.42 kg
Key N
Colour WH, White
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS10 = RPS-N-BK-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.42 kg
    Key N
    Colour BK, Black
    Contact 455A, T5
ULRPS10 = RPS-N-BK-T5-UL

455A M12 Threaded Post Termination
Weight 0.42 kg
Key N
Colour BK, Black
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS11 = RPS-1-R-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 1
    Colour R, Red
    Contact 455A, T5
ULRPS11 = RPS-1-R-T5-UL

455A M12 Threaded Post Termination
Weight 0.42 kg
Key 1
Colour R, Red
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS07 = RPS-1-BN-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 1
    Colour BN, Brown
    Contact 455A, T5
ULRPS07 = RPS-1-BN-T5-UL

455A M12 Threaded Post Termination
Weight 0.42 kg
Key 1
Colour BN, Brown
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS08 = RPS-2-BK-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 2
    Colour BK, Black
    Contact 455A, T5
ULRPS08 = RPS-2-BK-T5-UL

455A M12 Threaded Post Termination
Weight 0.42 kg
Key 2
Colour BK, Black
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS03 = RPS-1-BK-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 1
    Colour BK, Black
    Contact 455A, T5
ULRPS03 = RPS-1-BK-T5-UL

455A M12 Threaded Post Termination
Weight 0.42 kg
Key 1
Colour BK, Black
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS04 = RPS-2-R-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 2
    Colour R, Red
    Contact 455A, T5
ULRPS04 = RPS-2-R-T5-UL

455A M12 Threaded Post Termination
Weight 0.42 kg
Key 2
Colour R, Red
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS13 = RPS-2-WH-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 2
    Colour WH, White
    Contact 455A, T5
ULRPS13 = RPS-2-WH-T5-UL

455A M12 Threaded Post Termination
Weight 0.42 kg
Key 2
Colour WH, White
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS12 = RPS-2-Y-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 2
    Colour Y, Yellow
    Contact 455A, T5
ULRPS12 = RPS-2-Y-T5-UL

455A M12 Threaded Post Termination
Weight 0.42 kg
Key 2
Colour Y, Yellow
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS09 = RPS-3-GY-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 3
    Colour Grey, GY
    Contact 455A, T5
ULRPS09 = RPS-3-GY-T5-UL

455A M12 Threaded Post Termination
Weight 0.42 kg
Key 3
Colour Grey, GY
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS16 = RPS-E-GN-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.42 kg
    Key E
    Colour GN, Green
    Contact 600A, T8
ULRPS16 = RPS-E-GN-T8-UL

600A M12 Threaded Post Termination
Weight 0.42 kg
Key E
Colour GN, Green
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS05 = RPS-3-BL-T5-UL

  • 455A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 3
    Colour BL, Blue
    Contact 455A, T5
ULRPS05 = RPS-3-BL-T5-UL

455A M12 Threaded Post Termination
Weight 0.42 kg
Key 3
Colour BL, Blue
Contact 455A, T5

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS25 = RPS-N-BK-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.42 kg
    Key N
    Colour BK, Black
    Contact 600A, T8
ULRPS25 = RPS-N-BK-T8-UL

600A M12 Threaded Post Termination
Weight 0.42 kg
Key N
Colour BK, Black
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS21 = RPS-N-BL-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.42 kg
    Key N
    Colour BL, Blue
    Contact 600A, T8
ULRPS21 = RPS-N-BL-T8-UL

600A M12 Threaded Post Termination
Weight 0.42 kg
Key N
Colour BL, Blue
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS22 = RPS-1-BN-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 1
    Colour BN, Brown
    Contact 600A, T8
ULRPS22 = RPS-1-BN-T8-UL

600A M12 Threaded Post Termination
Weight 0.42 kg
Key 1
Colour BN, Brown
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS17 = RPS-N-WH-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.42 kg
    Key N
    Colour WH, White
    Contact 600A, T8
ULRPS17 = RPS-N-WH-T8-UL

600A M12 Threaded Post Termination
Weight 0.42 kg
Key N
Colour WH, White
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS18 = RPS-1-BK-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 1
    Colour BK, Black
    Contact 600A, T8
ULRPS18 = RPS-1-BK-T8-UL

600A M12 Threaded Post Termination
Weight 0.42 kg
Key 1
Colour BK, Black
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS26 = RPS-1-R-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 1
    Colour R, Red
    Contact 600A, T8
ULRPS26 = RPS-1-R-T8-UL

600A M12 Threaded Post Termination
Weight 0.42 kg
Key 1
Colour R, Red
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • RPS0015 = RPS-2-BK-T8

  • 800A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 2
    Colour BK, Black
    Contact 800A, T8
RPS0015 = RPS-2-BK-T8

800A M12 Threaded Post Termination
Weight 0.42 kg
Key 2
Colour BK, Black
Contact 800A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS28 = RPS-2-WH-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 2
    Colour WH, White
    Contact 600A, T8
ULRPS28 = RPS-2-WH-T8-UL

600A M12 Threaded Post Termination
Weight 0.42 kg
Key 2
Colour WH, White
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS19 = RPS-2-R-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 2
    Colour R, Red
    Contact 600A, T8
ULRPS19 = RPS-2-R-T8-UL

600A M12 Threaded Post Termination
Weight 0.42 kg
Key 2
Colour R, Red
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS27 = RPS-2-Y-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 2
    Colour Y, Yellow
    Contact 600A, T8
ULRPS27 = RPS-2-Y-T8-UL

600A M12 Threaded Post Termination
Weight 0.42 kg
Key 2
Colour Y, Yellow
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS20 = RPS-3-BL-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 3
    Colour BL, Blue
    Contact 600A, T8
ULRPS20 = RPS-3-BL-T8-UL

600A M12 Threaded Post Termination
Weight 0.42 kg
Key 3
Colour BL, Blue
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULRPS24 = RPS-3-GY-T8-UL

  • 600A M12 Threaded Post Termination
    Weight 0.42 kg
    Key 3
    Colour Grey, GY
    Contact 600A, T8
ULRPS24 = RPS-3-GY-T8-UL

600A M12 Threaded Post Termination
Weight 0.42 kg
Key 3
Colour Grey, GY
Contact 600A, T8

X

Powersafe

Download Product PDFdownload pdf

  • ULRL06 = RLS-N-BL-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.56 kg
    Key N
    Colour BL, Blue
    Contact S120
    Gland M40A
ULRL06 = RLS-N-BL-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.56 kg
Key N
Colour BL, Blue
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULRL01 = RLS-E-GN-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.56 kg
    Key E
    Colour GN, Green
    Contact S120
    Gland M40A
ULRL01 = RLS-E-GN-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.56 kg
Key E
Colour GN, Green
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULRL02 = RLS-N-WH-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.56 kg
    Key N
    Colour WH, White
    Contact S120
    Gland M40A
ULRL02 = RLS-N-WH-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.56 kg
Key N
Colour WH, White
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULRL10 = RLS-N-BK-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.56 kg
    Key N
    Colour BK, Black
    Contact S120
    Gland M40A
ULRL10 = RLS-N-BK-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.56 kg
Key N
Colour BK, Black
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULRL11 = RLS-1-R-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.56 kg
    Key 1
    Colour R, Red
    Contact S120
    Gland M40A
ULRL11 = RLS-1-R-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.56 kg
Key 1
Colour R, Red
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULRL07 = RLS-1-BN-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.56 kg
    Key 1
    Colour BN, Brown
    Contact S120
    Gland M40A
ULRL07 = RLS-1-BN-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.56 kg
Key 1
Colour BN, Brown
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULRL08 = RLS-2-BK-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.56 kg
    Key 2
    Colour BK, Black
    Contact S120
    Gland M40A
ULRL08 = RLS-2-BK-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.56 kg
Key 2
Colour BK, Black
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULRL03 = RLS-1-BK-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.56 kg
    Key 1
    Colour BK, Black
    Contact S120
    Gland M40A
ULRL03 = RLS-1-BK-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.56 kg
Key 1
Colour BK, Black
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULRL04 = RLS-2-R-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.56 kg
    Key 2
    Colour R, Red
    Contact S120
    Gland M40A
ULRL04 = RLS-2-R-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.56 kg
Key 2
Colour R, Red
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULRL13 = RLS-2-WH-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.56 kg
    Key 2
    Colour WH, White
    Contact S120
    Gland M40A
ULRL13 = RLS-2-WH-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.56 kg
Key 2
Colour WH, White
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULRL12 = RLS-2-Y-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.56 kg
    Key 2
    Colour Y, Yellow
    Contact S120
    Gland M40A
ULRL12 = RLS-2-Y-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.56 kg
Key 2
Colour Y, Yellow
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • ULRL09 = RLS-3-GY-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.56 kg
    Key 3
    Colour Grey, GY
    Contact S120
    Gland M40A
ULRL09 = RLS-3-GY-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.56 kg
Key 3
Colour Grey, GY
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • RLS0016 = RLS-E-GN-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.63 kg
    Key E
    Colour GN, Green
    Contact C240
    Gland M40B
RLS0016 = RLS-E-GN-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.63 kg
Key E
Colour GN, Green
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • ULRL05 = RLS-3-BL-S120-M40A

  • 455A c/w 120mm sleeve – 19-28mm clamping range
    Weight 0.56 kg
    Key 3
    Colour BL, Blue
    Contact S120
    Gland M40A
ULRL05 = RLS-3-BL-S120-M40A

455A c/w 120mm sleeve – 19-28mm clamping range
Weight 0.56 kg
Key 3
Colour BL, Blue
Contact S120
Gland M40A

X

Powersafe

Download Product PDFdownload pdf

  • RLS0015 = RLS-N-BL-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.63 kg
    Key N
    Colour BL, Blue
    Contact C240
    Gland M40B
RLS0015 = RLS-N-BL-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.63 kg
Key N
Colour BL, Blue
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • RLS0017 = RLS-N-BK-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.63 kg
    Key N
    Colour BK, Black
    Contact C240
    Gland M40B
RLS0017 = RLS-N-BK-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.63 kg
Key N
Colour BK, Black
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • RLS0012 = RLS-1-BN-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.63 kg
    Key 1
    Colour BN, Brown
    Contact C240
    Gland M40B
RLS0012 = RLS-1-BN-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.63 kg
Key 1
Colour BN, Brown
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • RLS0045 = RLS-N-WH-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.63 kg
    Key N
    Colour WH, White
    Contact C240
    Gland M40B
RLS0045 = RLS-N-WH-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.63 kg
Key N
Colour WH, White
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • RLS0046 = RLS-1-BK-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.63 kg
    Key 1
    Colour BK, Black
    Contact C240
    Gland M40B
RLS0046 = RLS-1-BK-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.63 kg
Key 1
Colour BK, Black
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • RLS0018 = RLS-1-R-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.63 kg
    Key 1
    Colour R, Red
    Contact C240
    Gland M40B
RLS0018 = RLS-1-R-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.63 kg
Key 1
Colour R, Red
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • RLS0013 = RLS-2-BK-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.63 kg
    Key 2
    Colour BK, Black
    Contact C240
    Gland M40B
RLS0013 = RLS-2-BK-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.63 kg
Key 2
Colour BK, Black
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • RLS0019 = RLS-2-WH-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.63 kg
    Key 2
    Colour WH, White
    Contact C240
    Gland M40B
RLS0019 = RLS-2-WH-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.63 kg
Key 2
Colour WH, White
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • RLS0020 = RLS-2-Y-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.63 kg
    Key 2
    Colour Y, Yellow
    Contact C240
    Gland M40B
RLS0020 = RLS-2-Y-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.63 kg
Key 2
Colour Y, Yellow
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • RLS0047 = RLS-2-R-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.63 kg
    Key 2
    Colour R, Red
    Contact C240
    Gland M40B
RLS0047 = RLS-2-R-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.63 kg
Key 2
Colour R, Red
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • RLS0014 = RLS-3-GY-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.63 kg
    Key 3
    Colour Grey, GY
    Contact C240
    Gland M40B
RLS0014 = RLS-3-GY-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.63 kg
Key 3
Colour Grey, GY
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • RLS0021 = RLS-3-BL-C240-M40B

  • 800A 240mm Crimp Termination – 22-32mm clamping range
    Weight 0.63 kg
    Key 3
    Colour BL, Blue
    Contact C240
    Gland M40B
RLS0021 = RLS-3-BL-C240-M40B

800A 240mm Crimp Termination – 22-32mm clamping range
Weight 0.63 kg
Key 3
Colour BL, Blue
Contact C240
Gland M40B

X

Powersafe

Download Product PDFdownload pdf

  • SD00061 = PS5-E-108 Sequential Box Euro

  • 5 Port Source Box Euro – E=Green – N=Blue – L1=Brown – L2=Black – L3=Grey
    Weight 6.3 kg
SD00061 = PS5-E-108 Sequential Box Euro

5 Port Source Box Euro – E=Green – N=Blue – L1=Brown – L2=Black – L3=Grey
Weight 6.3 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00288 = PS5-UK-108 Sequential Box UK

  • 5 Port Source Box Old UK Colours – E=Green – N=Black – L1=Red – L2=Yellow – L3=Blue
    Weight 6.3 kg
SD00288 = PS5-UK-108 Sequential Box UK

5 Port Source Box Old UK Colours – E=Green – N=Black – L1=Red – L2=Yellow – L3=Blue
Weight 6.3 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00062 = PD5-E-108 Sequential Box Euro

  • 5 Port Drain Box Euro – E=Green – N=Blue – L1=Brown – L2=Black – L3=Grey
    Weight 5.8 kg
SD00062 = PD5-E-108 Sequential Box Euro

5 Port Drain Box Euro – E=Green – N=Blue – L1=Brown – L2=Black – L3=Grey
Weight 5.8 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00287 = PS5-AU-108 Sequential Box AUS

  • 5 Port Source Box Australia – E=Green – N=Black – L1=Red – L2=White – L3=Blue
    Weight 6.3 kg
SD00287 = PS5-AU-108 Sequential Box AUS

5 Port Source Box Australia – E=Green – N=Black – L1=Red – L2=White – L3=Blue
Weight 6.3 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00354 = PD5-UK-108 Sequential Box UK

  • 5 Port Drain Box Old UK Colours – E=Green – N=Black – L1=Red – L2=Yellow – L3=Blue
    Weight 5.8 kg
Powersafe Connectors from PHASE 3
SD00354 = PD5-UK-108 Sequential Box UK

5 Port Drain Box Old UK Colours – E=Green – N=Black – L1=Red – L2=Yellow – L3=Blue
Weight 5.8 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00398 = PS5-US-108 Sequential Box USA

  • 5 Port Source Box USA – E=Green – N=White – L1=Black – L2=Red – L3=Blue
    Weight 6.3 kg
SD00398 = PS5-US-108 Sequential Box USA

5 Port Source Box USA – E=Green – N=White – L1=Black – L2=Red – L3=Blue
Weight 6.3 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00266 = PD5-AU-108 Sequential Box AUS

  • 5 Port Drain Box Australia – E=Green – N=Black – L1=Red – L2=White – L3=Blue
    Weight 5.8 kg
SD00266 = PD5-AU-108 Sequential Box AUS

5 Port Drain Box Australia – E=Green – N=Black – L1=Red – L2=White – L3=Blue
Weight 5.8 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00399 = PD5-US-108 Sequential Box USA

  • 5 Port Drain Box USA – E=Green – N=White – L1=Black – L2=Red – L3=Blue
    Weight 5.8 kg
SD00399 = PD5-US-108 Sequential Box USA

5 Port Drain Box USA – E=Green – N=White – L1=Black – L2=Red – L3=Blue
Weight 5.8 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00474 = PD4-E-108 Sequential Box Euro

  • 4 Port Drain Box Euro – E=Green – L1=Brown – L2=Black – L3=Grey
    Weight 5.1 kg
SD00474 = PD4-E-108 Sequential Box Euro

4 Port Drain Box Euro – E=Green – L1=Brown – L2=Black – L3=Grey
Weight 5.1 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00473 = PS4-E-108 Sequential Box Euro

  • 4 Port Source Box Euro – E=Green – L1=Brown – L2=Black – L3=Grey
    Weight 5.3 kg
SD00473 = PS4-E-108 Sequential Box Euro

4 Port Source Box Euro – E=Green – L1=Brown – L2=Black – L3=Grey
Weight 5.3 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00527 = PD4-AU-108 Sequential Box AUS

  • 4 Port Drain Box Australia – E=Green – L1=Red – L2=White – L3=Blue
    Weight 5.1 kg
SD00527 = PD4-AU-108 Sequential Box AUS

4 Port Drain Box Australia – E=Green – L1=Red – L2=White – L3=Blue
Weight 5.1 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00526 = PS4-AU-108 Sequential Box AUS

  • 4 Port Source Box Australia – E=Green – L1=Red – L2=White – L3=Blue
    Weight 5.3 kg
SD00526 = PS4-AU-108 Sequential Box AUS

4 Port Source Box Australia – E=Green – L1=Red – L2=White – L3=Blue
Weight 5.3 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00556 = PD4-US-108 Sequential Box USA

  • 4 Port Drain Box USA – E=Green – L1=Black – L2=Red – L3=Blue
    Weight 5.1 kg
SD00556 = PD4-US-108 Sequential Box USA

4 Port Drain Box USA – E=Green – L1=Black – L2=Red – L3=Blue
Weight 5.1 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00555 = PS4-US-108 Sequential Box USA

  • 4 Port Source Box USA – E=Green – L1=Black – L2=Red – L3=Blue
    Weight 5.3 kg
SD00555 = PS4-US-108 Sequential Box USA

4 Port Source Box USA – E=Green – L1=Black – L2=Red – L3=Blue
Weight 5.3 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00557 = PS4-UK-108 Sequential Box UK

  • 4 Port Source Box Old UK Colours – E=Green – L1=Red – L2=Yellow – L3=Blue
    Weight 5.3 kg
SD00557 = PS4-UK-108 Sequential Box UK

4 Port Source Box Old UK Colours – E=Green – L1=Red – L2=Yellow – L3=Blue
Weight 5.3 kg

X

Powersafe

Download Product PDFdownload pdf

  • SD00558 = PD4-UK-108 Sequential Box UK

  • 4 Port Drain Box Old UK Colours – E=Green – L1=Red – L2=Yellow – L3=Blue
    Weight 5.1 kg
    Dimensions 25 x 15 x 15 cm
SD00558 = PD4-UK-108 Sequential Box UK

4 Port Drain Box Old UK Colours – E=Green – L1=Red – L2=Yellow – L3=Blue
Weight 5.1 kg
Dimensions 25 x 15 x 15 cm

X

Powersafe

Download Product PDFdownload pdf

  • PP01195

  • Powersafe,Dust Cap IP44, Panel Drain
PP01195

Powersafe,Dust Cap IP44, Panel Drain

X

Powersafe

Download Product PDFdownload pdf

  • PP01194

  • Powersafe,Dust Cap IP44, Panel Source
PP01194

Powersafe,Dust Cap IP44, Panel Source

X

Powersafe

Download Product PDFdownload pdf

  • PP01193

  • Powersafe,Dust Cap IP44, Line Drain
PP01193

Powersafe,Dust Cap IP44, Line Drain

X

Powersafe

Download Product PDFdownload pdf

  • PP01192

  • Powersafe,Dust Cap IP44, Line Source
PP01192

Powersafe,Dust Cap IP44, Line Source

X

Powersafe

Download Product PDFdownload pdf

  • PP01454

  • Powersafe,Environmental Cap IP67, Panel Drain, Yellow, L3
PP01454

Powersafe,Environmental Cap IP67, Panel Drain, Yellow, L3

X

Powersafe

Download Product PDFdownload pdf

  • PP01458

  • Powersafe,Environmental Cap IP67, Panel Source, Yellow, L3
PP01458

Powersafe,Environmental Cap IP67, Panel Source, Yellow, L3

X

Powersafe

Download Product PDFdownload pdf

  • PP01453

  • Powersafe,Environmental Cap IP67, Panel Drain, Orange, L2
PP01453

Powersafe,Environmental Cap IP67, Panel Drain, Orange, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP01457

  • Powersafe,Environmental Cap IP67, Panel Source, Orange, L2
PP01457

Powersafe,Environmental Cap IP67, Panel Source, Orange, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00124

  • Powersafe,Environmental Cap IP67, Panel Drain, White, L2
PP00124

Powersafe,Environmental Cap IP67, Panel Drain, White, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00221

  • Powersafe,Environmental Cap IP67, Panel Source, White, L2
PP00221

Powersafe,Environmental Cap IP67, Panel Source, White, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00121

  • Powersafe,Environmental Cap IP67, Panel Drain, Yellow, L2
PP00121

Powersafe,Environmental Cap IP67, Panel Drain, Yellow, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00224

  • Powersafe,Environmental Cap IP67, Panel Source, Yellow, L2
PP00224

Powersafe,Environmental Cap IP67, Panel Source, Yellow, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00120

  • Powersafe,Environmental Cap IP67, Panel Drain, Red, L1
PP00120

Powersafe,Environmental Cap IP67, Panel Drain, Red, L1

X

Powersafe

Download Product PDFdownload pdf

  • PP00223

  • Powersafe,Environmental Cap IP67, Panel Source, Red, L1
PP00223

Powersafe,Environmental Cap IP67, Panel Source, Red, L1

X

Powersafe

Download Product PDFdownload pdf

  • PP00123

  • Powersafe,Environmental Cap IP67, Panel Drain, Black, Neutral
PP00123

Powersafe,Environmental Cap IP67, Panel Drain, Black, Neutral

X

Powersafe

Download Product PDFdownload pdf

  • PP00222

  • Powersafe,Environmental Cap IP67, Panel Source, Black, Neutral
PP00222

Powersafe,Environmental Cap IP67, Panel Source, Black, Neutral

X

Powersafe

Download Product PDFdownload pdf

  • SCP0207

  • Powersafe,Environmental Cap IP67, Panel Drain, Grey, L3
SCP0207

Powersafe,Environmental Cap IP67, Panel Drain, Grey, L3

X

Powersafe

Download Product PDFdownload pdf

  • SCP0211

  • Powersafe,Environmental Cap IP67, Panel Source, Grey, L3
SCP0211

Powersafe,Environmental Cap IP67, Panel Source, Grey, L3

X

Powersafe

Download Product PDFdownload pdf

  • SCP0206

  • Powersafe,Environmental Cap IP67, Panel Drain, Black, L2
SCP0206

Powersafe,Environmental Cap IP67, Panel Drain, Black, L2

X

Powersafe

Download Product PDFdownload pdf

  • SCP0210

  • Powersafe,Environmental Cap IP67, Panel Source, Black, L2
SCP0210

Powersafe,Environmental Cap IP67, Panel Source, Black, L2

X

Powersafe

Download Product PDFdownload pdf

  • SCP0209

  • Powersafe,Environmental Cap IP67, Panel Source, Brown, L1
SCP0209

Powersafe,Environmental Cap IP67, Panel Source, Brown, L1

X

Powersafe

Download Product PDFdownload pdf

  • SCP0204

  • Powersafe,Environmental Cap IP67, Panel Drain, Blue, Neutral
SCP0204

Powersafe,Environmental Cap IP67, Panel Drain, Blue, Neutral

X

Powersafe

Download Product PDFdownload pdf

  • SCP0208

  • Powersafe,Environmental Cap IP67, Panel Source, Blue, Neutral
SCP0208

Powersafe,Environmental Cap IP67, Panel Source, Blue, Neutral

X

Powersafe

Download Product PDFdownload pdf

  • PP00122

  • Powersafe,Environmental Cap IP67, Panel Drain, Blue, L3
PP00122

Powersafe,Environmental Cap IP67, Panel Drain, Blue, L3

X

Powersafe

Download Product PDFdownload pdf

  • PP00225

  • Powersafe,Environmental Cap IP67, Panel Source, Blue, L3
PP00225

Powersafe,Environmental Cap IP67, Panel Source, Blue, L3

X

Powersafe

Download Product PDFdownload pdf

  • PP00962

  • Powersafe,Environmental Cap IP67, Panel Drain, Red, L2
PP00962

Powersafe,Environmental Cap IP67, Panel Drain, Red, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00952

  • Powersafe,Environmental Cap IP67, Panel Source, Red, L2
PP00952

Powersafe,Environmental Cap IP67, Panel Source, Red, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00961

  • Powersafe,Environmental Cap IP67, Panel Drain, Black, L1
PP00961

Powersafe,Environmental Cap IP67, Panel Drain, Black, L1

X

Powersafe

Download Product PDFdownload pdf

  • PP00951

  • Powersafe,Environmental Cap IP67, Panel Source, Black, L1
PP00951

Powersafe,Environmental Cap IP67, Panel Source, Black, L1

X

Powersafe

Download Product PDFdownload pdf

  • PP00960

  • Powersafe,Environmental Cap IP67, Panel Drain, White, Neutral
PP00960

Powersafe,Environmental Cap IP67, Panel Drain, White, Neutral

X

Powersafe

Download Product PDFdownload pdf

  • PP00950

  • Powersafe,Environmental Cap IP67, Panel Source, White, Neutral
PP00950

Powersafe,Environmental Cap IP67, Panel Source, White, Neutral

X

Powersafe

Download Product PDFdownload pdf

  • SCP0103

  • Powersafe,Environmental Cap IP67, Panel Drain, Green, Ground
SCP0103

Powersafe,Environmental Cap IP67, Panel Drain, Green, Ground

X

Powersafe

Download Product PDFdownload pdf

  • SCP0102

  • Powersafe,Environmental Cap IP67, Panel Source, Green, Ground
SCP0102

Powersafe,Environmental Cap IP67, Panel Source, Green, Ground

X

Powersafe

Download Product PDFdownload pdf

  • PP00048

  • Powersafe,Environmental Cap IP67, Line Source, White, L2
PP00048

Powersafe,Environmental Cap IP67, Line Source, White, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00040

  • Powersafe,Environmental Cap IP67, Line Source, Yellow, L2
PP00040

Powersafe,Environmental Cap IP67, Line Source, Yellow, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00223

  • Powersafe,Environmental Cap IP67, Line Source, Red, L1
PP00223

Powersafe,Environmental Cap IP67, Line Source, Red, L1

X

Powersafe

Download Product PDFdownload pdf

  • PP00049

  • Powersafe,Environmental Cap IP67, Line Source, Black, Neutral
PP00049

Powersafe,Environmental Cap IP67, Line Source, Black, Neutral

X

Powersafe

Download Product PDFdownload pdf

  • PP00208

  • Powersafe,Environmental Cap IP67, Line Drain, White, L2
PP00208

Powersafe,Environmental Cap IP67, Line Drain, White, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00377

  • Powersafe,Environmental Cap IP67, Line Drain, Yellow, L2
PP00377

Powersafe,Environmental Cap IP67, Line Drain, Yellow, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00207

  • Powersafe,Environmental Cap IP67, Line Drain, Red, L1
PP00207

Powersafe,Environmental Cap IP67, Line Drain, Red, L1

X

Powersafe

Download Product PDFdownload pdf

  • PP00206

  • Powersafe,Environmental Cap IP67, Line Drain, Black, Neutral
PP00206

Powersafe,Environmental Cap IP67, Line Drain, Black, Neutral

X

Powersafe

Download Product PDFdownload pdf

  • PP00193

  • Powersafe,Environmental Cap IP67, Line Source, Grey, L3
PP00193

Powersafe,Environmental Cap IP67, Line Source, Grey, L3

X

Powersafe

Download Product PDFdownload pdf

  • PP00192

  • Powersafe,Environmental Cap IP67, Line Source, Black, L2
PP00192

Powersafe,Environmental Cap IP67, Line Source, Black, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00191

  • Powersafe,Environmental Cap IP67, Line Source, Brown, L1
PP00191

Powersafe,Environmental Cap IP67, Line Source, Brown, L1

X

Powersafe

Download Product PDFdownload pdf

  • PP00190

  • Powersafe,Environmental Cap IP67, Line Source, Blue, Neutral
PP00190

Powersafe,Environmental Cap IP67, Line Source, Blue, Neutral

X

Powersafe

Download Product PDFdownload pdf

  • PP00087

  • Powersafe,Environmental Cap IP67, Line Drain, Grey, L3
PP00087

Powersafe,Environmental Cap IP67, Line Drain, Grey, L3

X

Powersafe

Download Product PDFdownload pdf

  • SCP0205

  • Powersafe,Environmental Cap IP67, Line Drain, Black, L2
SCP0205

Powersafe,Environmental Cap IP67, Line Drain, Black, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00085

  • Powersafe,Environmental Cap IP67, Line Drain, Brown, L1
PP00085

Powersafe,Environmental Cap IP67, Line Drain, Brown, L1

X

Powersafe

Download Product PDFdownload pdf

  • PP00084

  • Powersafe,Environmental Cap IP67, Line Drain, Blue, Neutral
PP00084

Powersafe,Environmental Cap IP67, Line Drain, Blue, Neutral

X

Powersafe

Download Product PDFdownload pdf

  • PP00262

  • Powersafe Box Key
PP00262

Powersafe Box Key

X

Powersafe

Download Product PDFdownload pdf

  • PP01456

  • Powersafe,Environmental Cap IP67, Line Source, Yellow, L3
PP01456

Powersafe,Environmental Cap IP67, Line Source, Yellow, L3

X

Powersafe

Download Product PDFdownload pdf

  • PP01455

  • Powersafe,Environmental Cap IP67, Line Source, Orange, L2
PP01455

Powersafe,Environmental Cap IP67, Line Source, Orange, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP01452

  • Powersafe,Environmental Cap IP67, Line Drain, Yellow, L3
PP01452

Powersafe,Environmental Cap IP67, Line Drain, Yellow, L3

X

Powersafe

Download Product PDFdownload pdf

  • PP01451

  • Powersafe,Environmental Cap IP67, Line Drain, Orange, L2
PP01451

Powersafe,Environmental Cap IP67, Line Drain, Orange, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00041

  • Powersafe,Environmental Cap IP67, Line Source, Blue, L3
PP00041

Powersafe,Environmental Cap IP67, Line Source, Blue, L3

X

Powersafe

Download Product PDFdownload pdf

  • PP00965

  • Powersafe,Environmental Cap IP67, Line Source, Red, L2
PP00965

Powersafe,Environmental Cap IP67, Line Source, Red, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00964

  • Powersafe,Environmental Cap IP67, Line Source, Black, L1
PP00964

Powersafe,Environmental Cap IP67, Line Source, Black, L1

X

Powersafe

Download Product PDFdownload pdf

  • PP00963

  • Powersafe,Environmental Cap IP67, Line Source, White, Neutral
PP00963

Powersafe,Environmental Cap IP67, Line Source, White, Neutral

X

Powersafe

Download Product PDFdownload pdf

  • PP00067

  • Powersafe,Environmental Cap IP67, Line Source, Green, Ground
PP00067

Powersafe,Environmental Cap IP67, Line Source, Green, Ground

X

Powersafe

Download Product PDFdownload pdf

  • PP00209

  • Powersafe,Environmental Cap IP67, Line Drain, Blue, L3
PP00209

Powersafe,Environmental Cap IP67, Line Drain, Blue, L3

X

Powersafe

Download Product PDFdownload pdf

  • PP00959

  • Powersafe,Environmental Cap IP67, Line Drain, Red, L2
PP00959

Powersafe,Environmental Cap IP67, Line Drain, Red, L2

X

Powersafe

Download Product PDFdownload pdf

  • PP00958

  • Powersafe,Environmental Cap IP67, Line Drain, Black, L1
PP00958

Powersafe,Environmental Cap IP67, Line Drain, Black, L1

X

Powersafe

Download Product PDFdownload pdf

  • PP00957

  • Powersafe,Environmental Cap IP67, Line Drain, White, Neutral
PP00957

Powersafe,Environmental Cap IP67, Line Drain, White, Neutral

X

Powersafe

Download Product PDFdownload pdf

  • PP00083

  • Powersafe,Environmental Cap IP67, Line Drain, Green, Ground
PP00083

Powersafe,Environmental Cap IP67, Line Drain, Green, Ground
