Phase 3 Powersafe And Multipin Connectors

Call about our Products (800) 227-6784

Choose From the Products Below

Multipin Connectors

Connect Across the Globe with Our VSC 19 Pin Connectors


Veam and Socapex Compatible


We’re making it easy to light the way from the US to the UK and beyond.  19 Pin Lighting Connectors from Phase 3 are UL and CE Listed.  No more worrying about one connector for the states and another when you tour abroad. Phase 3 brand connectors make life on the road easier – and save you money.

Rugged. Durable. Safe.


Not only are PHASE 3’s 19 pin connectors versatile, they are also built to last.  These connectors were created specifically for professional touring applications.  The rugged design holds up after countless uses, and robust construction ensures reliable operation, making them the ultimate multi-pin connectors for industry pros. And you can expand your power options with a full range of accessories from ground disks to crimp tools and break-out backshells.

Key Features and Specifications



  • Veam & Socapex SL419 compatible

  • ROHS compliant

  • UL and CE approved

  • Rated 25A

  • High impact shell and anodized, wear-resistant finish

  • Easy grip with heavy duty coupling ring

  • Thick backshells with locking screws

  • Integral insulation sleeves

  • Spider clamps for 6 individual wires

  • Cable glands with bushings

  • IP67 when mated

  • FLMB Earth contacts

  • Multi-point gold-plated contacts

  • Available with crimp or solder contacts


Whether you are lighting a small theatre or an entire arena, VSC 19 pin connectors from PHASE 3 will make your job easier.

Our Product Line for

X

Multipin Connectors

P19-LF-S-M40SS

Download Product PDFdownload pdf

  • P190038

  • P19-LF-S-M40SS
    Line/Cable End – Female Solder Pins – Socket – 10-16mm clamping range
    Weight: 0.38 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M40SS
P190038

P19-LF-S-M40SS
Line/Cable End – Female Solder Pins – Socket – 10-16mm clamping range
Weight: 0.38 kg
Choose your connector: P19
Contact: SOLDER
Gland: M40SS

X

Multipin Connectors

P19-LM-S-M40A

Download Product PDFdownload pdf

  • P190138

  • P19-LM-S-M40A
    Line/Cable End – Male Solder Pins – Plug – 16-28mm clamping range – blue coupling ring
    Weight: 0.4 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M40A
P190138

P19-LM-S-M40A
Line/Cable End – Male Solder Pins – Plug – 16-28mm clamping range – blue coupling ring
Weight: 0.4 kg
Choose your connector: P19
Contact: SOLDER
Gland: M40A

X

Multipin Connectors

P19-LF-S-M40A

Download Product PDFdownload pdf

  • P190141

  • P19-LF-S-M40A
    Line/Cable End – Female Solder Pins – Socket – 16-28mm clamping range
    Weight: 0.38 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M40A
P190141

P19-LF-S-M40A
Line/Cable End – Female Solder Pins – Socket – 16-28mm clamping range
Weight: 0.38 kg
Choose your connector: P19
Contact: SOLDER
Gland: M40A

X

Multipin Connectors

P19-LF-S-M40B

Download Product PDFdownload pdf

  • P190339

  • P19-LF-S-M40B
    Line/Cable End – Female Solder Pins – Socket – 22-32mm clamping range
    Weight: 0.38 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M40B
P190339

P19-LF-S-M40B
Line/Cable End – Female Solder Pins – Socket – 22-32mm clamping range
Weight: 0.38 kg
Choose your connector: P19
Contact: SOLDER
Gland: M40B

X

Multipin Connectors

P19-LM-S-M40B

Download Product PDFdownload pdf

  • P190231

  • P19-LM-S-M40B
    Line/Cable End – Male Solder Pins – Plug – 22-32mm clamping range – blue coupling ring
    Weight: 0.4 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M40B
P190231

P19-LM-S-M40B
Line/Cable End – Male Solder Pins – Plug – 22-32mm clamping range – blue coupling ring
Weight: 0.4 kg
Choose your connector: P19
Contact: SOLDER
Gland: M40B

X

Multipin Connectors

P19-LF-S-SPR-10

Download Product PDFdownload pdf

  • P190155

  • P19-LF-S-SPR-10
    Line/Cable End – Female Solder Pins – Socket – 6 x 10mm max (1.5mm cable)
    Weight: 0.5 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: SPR10
P190155

P19-LF-S-SPR-10
Line/Cable End – Female Solder Pins – Socket – 6 x 10mm max (1.5mm cable)
Weight: 0.5 kg
Choose your connector: P19
Contact: SOLDER
Gland: SPR10

X

Multipin Connectors

P19-LM-S-SPR-10

Download Product PDFdownload pdf

  • P190152

  • P19-LM-S-SPR-10
    Line/Cable End – Male Solder Pins – Plug – 6 x 10mm max (1.5mm cable) blue coupling ring
    Weight: 0.51 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: SPR10
P190152

P19-LM-S-SPR-10
Line/Cable End – Male Solder Pins – Plug – 6 x 10mm max (1.5mm cable) blue coupling ring
Weight: 0.51 kg
Choose your connector: P19
Contact: SOLDER
Gland: SPR10

X

Multipin Connectors

P19-LM-S-SPR-12

Download Product PDFdownload pdf

  • P190148

  • P19-LM-S-SPR-12
    Line/Cable End – Male Solder Pins – Plug – 6 x 12mm max (2.5mm cable) blue coupling ring
    Weight: 0.51 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: SPR12
P190148

P19-LM-S-SPR-12
Line/Cable End – Male Solder Pins – Plug – 6 x 12mm max (2.5mm cable) blue coupling ring
Weight: 0.51 kg
Choose your connector: P19
Contact: SOLDER
Gland: SPR12

X

Multipin Connectors

P19-LF-S-SPR-12

Download Product PDFdownload pdf

  • P190128

  • P19-LF-S-SPR-12
    Line/Cable End – Female Solder Pins – Socket – 6 x 12mm max (2.5mm cable)
    Weight: 0.5 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: SPR12
P190128

P19-LF-S-SPR-12
Line/Cable End – Female Solder Pins – Socket – 6 x 12mm max (2.5mm cable)
Weight: 0.5 kg
Choose your connector: P19
Contact: SOLDER
Gland: SPR12

X

Multipin Connectors

P19-PM-S

Download Product PDFdownload pdf

  • P190135

  • P19-PM-S
    Panel/Chassis Mount – Male Solder Pins – Plug – blue coupling ring
    Weight: 0.22 kg
    Choose your connector: P19
    Contact: SOLDER
P190135

P19-PM-S
Panel/Chassis Mount – Male Solder Pins – Plug – blue coupling ring
Weight: 0.22 kg
Choose your connector: P19
Contact: SOLDER

X

Multipin Connectors

P19-PF-S

Download Product PDFdownload pdf

  • P190132

  • P19-PF-S
    Panel/Chassis Mount – Female Solder Pins – Socket
    Weight: 0.2 kg
    Choose your connector: P19
    Contact: SOLDER
P190132

P19-PF-S
Panel/Chassis Mount – Female Solder Pins – Socket
Weight: 0.2 kg
Choose your connector: P19
Contact: SOLDER

X

Multipin Connectors

P19-LM-C-M40SS

Download Product PDFdownload pdf

  • P190033

  • P19-LM-C-M40SS
    Line/Cable End – Male Crimp Pins – Plug – 10-16mm clamping range – blue coupling ring
    Weight: 0.4 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M40SS
P190033

P19-LM-C-M40SS
Line/Cable End – Male Crimp Pins – Plug – 10-16mm clamping range – blue coupling ring
Weight: 0.4 kg
Choose your connector: P19
Contact: CRIMP
Gland: M40SS

X

Multipin Connectors

P19-LF-C-M40SS

Download Product PDFdownload pdf

  • P190037

  • P19-LF-C-M40SS
    Line/Cable End – Female Crimp Pins – Socket – 10-16mm clamping range
    Weight: 0.38 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M40SS
P190037

P19-LF-C-M40SS
Line/Cable End – Female Crimp Pins – Socket – 10-16mm clamping range
Weight: 0.38 kg
Choose your connector: P19
Contact: CRIMP
Gland: M40SS

X

Multipin Connectors

P19-LM-C-M40A

Download Product PDFdownload pdf

  • P190140

  • P19-LM-C-M40A
    Line/Cable End – Male Crimp Pins – Plug – 16-28mm clamping range – blue coupling ring
    Weight: 0.4 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M40A
P190140

P19-LM-C-M40A
Line/Cable End – Male Crimp Pins – Plug – 16-28mm clamping range – blue coupling ring
Weight: 0.4 kg
Choose your connector: P19
Contact: CRIMP
Gland: M40A

X

Multipin Connectors

P19-LF-C-M40A

Download Product PDFdownload pdf

  • P190142

  • P19-LF-C-M40A
    Line/Cable End – Female Crimp Pins – Socket – 16-28mm clamping range
    Weight: 0.38 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M40A
P190142

P19-LF-C-M40A
Line/Cable End – Female Crimp Pins – Socket – 16-28mm clamping range
Weight: 0.38 kg
Choose your connector: P19
Contact: CRIMP
Gland: M40A

X

Multipin Connectors

P19-LM-C-M40B

Download Product PDFdownload pdf

  • P190341

  • P19-LM-C-M40B
    Line/Cable End – Male Crimp Pins – Plug – 22-32mm clamping range – blue coupling ring
    Weight: 0.4 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M40B
P190341

P19-LM-C-M40B
Line/Cable End – Male Crimp Pins – Plug – 22-32mm clamping range – blue coupling ring
Weight: 0.4 kg
Choose your connector: P19
Contact: CRIMP
Gland: M40B

X

Multipin Connectors

P19-LF-C-M40B

Download Product PDFdownload pdf

  • P190340

  • P19-LF-C-M40B
    Line/Cable End – Female Crimp Pins – Socket – 22-32mm clamping range
    Weight: 0.38 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M40B
P190340

P19-LF-C-M40B
Line/Cable End – Female Crimp Pins – Socket – 22-32mm clamping range
Weight: 0.38 kg
Choose your connector: P19
Contact: CRIMP
Gland: M40B

X

Multipin Connectors

P19-LM-C-SPR-10

Download Product PDFdownload pdf

  • P190154

  • P19-LM-C-SPR-10
    Line/Cable End – Male Crimp Pins – Plug – 6 x 10mm max (1.5mm cable) blue coupling ring
    Weight: 0.51 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: SPR10
P190154

P19-LM-C-SPR-10
Line/Cable End – Male Crimp Pins – Plug – 6 x 10mm max (1.5mm cable) blue coupling ring
Weight: 0.51 kg
Choose your connector: P19
Contact: CRIMP
Gland: SPR10

X

Multipin Connectors

P19-LF-C-SPR-10

Download Product PDFdownload pdf

  • P190156

  • P19-LF-C-SPR-10
    Line/Cable End – Female Crimp Pins – Socket – 6 x 10mm max (1.5mm cable)
    Weight: 0.5 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: SPR10
P190156

P19-LF-C-SPR-10
Line/Cable End – Female Crimp Pins – Socket – 6 x 10mm max (1.5mm cable)
Weight: 0.5 kg
Choose your connector: P19
Contact: CRIMP
Gland: SPR10

X

Multipin Connectors

P19-LM-C-SPR-12

Download Product PDFdownload pdf

  • P190342

  • P19-LM-C-SPR-12
    Line/Cable End – Male Crimp Pins – Plug – 6 x 12mm max (2.5mm cable) blue coupling ring
    Weight: 0.51 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: SPR12
P190342

P19-LM-C-SPR-12
Line/Cable End – Male Crimp Pins – Plug – 6 x 12mm max (2.5mm cable) blue coupling ring
Weight: 0.51 kg
Choose your connector: P19
Contact: CRIMP
Gland: SPR12

X

Multipin Connectors

P19-LF-C-SPR-12

Download Product PDFdownload pdf

  • P190127

  • P19-LF-C-SPR-12
    Line/Cable End – Female Crimp Pins – Socket – 6 x 12mm max (2.5mm cable)
    Weight: 0.5 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: SPR12
P190127

P19-LF-C-SPR-12
Line/Cable End – Female Crimp Pins – Socket – 6 x 12mm max (2.5mm cable)
Weight: 0.5 kg
Choose your connector: P19
Contact: CRIMP
Gland: SPR12

X

Multipin Connectors

P19-PM-C

Download Product PDFdownload pdf

  • P190133

  • P19-PM-C
    Panel/Chassis Mount – Male Crimp Pins – Plug – blue coupling ring
    Weight: 0.22 kg
    Choose your connector: P19
    Contact: CRIMP
P190133

P19-PM-C
Panel/Chassis Mount – Male Crimp Pins – Plug – blue coupling ring
Weight: 0.22 kg
Choose your connector: P19
Contact: CRIMP

X

Multipin Connectors

P19-PF-C

Download Product PDFdownload pdf

  • P190131

  • P19-PF-C
    Panel/Chassis Mount – Female Crimp Pins – Socket
    Weight: 0.2 kg
    Choose your connector: P19
    Contact: CRIMP
P190131

P19-PF-C
Panel/Chassis Mount – Female Crimp Pins – Socket
Weight: 0.2 kg
Choose your connector: P19
Contact: CRIMP

X

Multipin Connectors

Download Product PDFdownload pdf

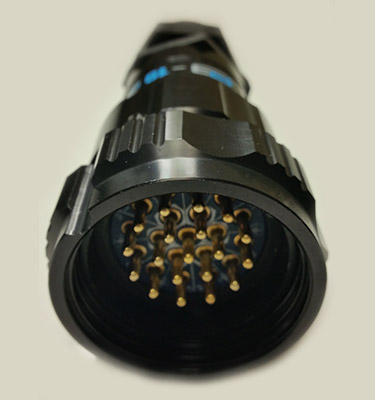

  • P190036

  • Line/Cable End – Male Solder Pins – Plug – 10-16mm clamping range – black coupling ring
    Weight: 0.4 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M40SS
P190036

Line/Cable End – Male Solder Pins – Plug – 10-16mm clamping range – black coupling ring
Weight: 0.4 kg
Choose your connector: P19
Contact: SOLDER
Gland: M40SS

X

Multipin Connectors

P19-LM-S-M40A

Download Product PDFdownload pdf

  • P190137

  • P19-LM-S-M40A
    Line/Cable End – Male Solder Pins – Plug – 16-28mm clamping range – black coupling ring
    Weight: 0.4 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M40A
P190137

P19-LM-S-M40A
Line/Cable End – Male Solder Pins – Plug – 16-28mm clamping range – black coupling ring
Weight: 0.4 kg
Choose your connector: P19
Contact: SOLDER
Gland: M40A

X

Multipin Connectors

P19-LM-S-SPR-10

Download Product PDFdownload pdf

  • P190151

  • P19-LM-S-SPR-10
    Line/Cable End – Male Solder Pins – Plug – 6 x 10mm max (1.5mm cable) black coupling ring
    Weight: 0.51 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: SPR10
P190151

P19-LM-S-SPR-10
Line/Cable End – Male Solder Pins – Plug – 6 x 10mm max (1.5mm cable) black coupling ring
Weight: 0.51 kg
Choose your connector: P19
Contact: SOLDER
Gland: SPR10

X

Multipin Connectors

P19-LM-S-M40B

Download Product PDFdownload pdf

  • P190345

  • P19-LM-S-M40B
    Line/Cable End – Male Solder Pins – Plug – 22-32mm clamping range – black coupling ring
    Weight: 0.4 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M40B
P190345

P19-LM-S-M40B
Line/Cable End – Male Solder Pins – Plug – 22-32mm clamping range – black coupling ring
Weight: 0.4 kg
Choose your connector: P19
Contact: SOLDER
Gland: M40B

X

Multipin Connectors

P19-LM-S-SPR-12

Download Product PDFdownload pdf

  • P190119

  • P19-LM-S-SPR-12
    Line/Cable End – Male Solder Pins – Plug – 6 x 12mm max (2.5mm cable) black coupling ring
    Choose your connector: P19
    Contact: SOLDER
    Gland: SPR12
P190119

P19-LM-S-SPR-12
Line/Cable End – Male Solder Pins – Plug – 6 x 12mm max (2.5mm cable) black coupling ring
Choose your connector: P19
Contact: SOLDER
Gland: SPR12

X

Multipin Connectors

P19-PM-S

Download Product PDFdownload pdf

  • P190136

  • P19-PM-S
    Panel/Chassis Mount – Male Solder Pins – Plug – black coupling ring
    Weight: 0.22 kg
    Choose your connector: P19
    Contact: SOLDER
P190136

P19-PM-S
Panel/Chassis Mount – Male Solder Pins – Plug – black coupling ring
Weight: 0.22 kg
Choose your connector: P19
Contact: SOLDER

X

Multipin Connectors

P19-LM-C-M40A

Download Product PDFdownload pdf

  • P190139

  • P19-LM-C-M40A
    Line/Cable End – Male Crimp Pins – Plug – 16-28mm clamping range – black coupling ring
    Weight: 0.4 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M40A
P190139

P19-LM-C-M40A
Line/Cable End – Male Crimp Pins – Plug – 16-28mm clamping range – black coupling ring
Weight: 0.4 kg
Choose your connector: P19
Contact: CRIMP
Gland: M40A

X

Multipin Connectors

Download Product PDFdownload pdf

  • P190034

  • Line/Cable End – Male Crimp Pins – Plug – 10-16mm clamping range – black coupling ring
    Weight: 0.4 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M40SS
P190034

Line/Cable End – Male Crimp Pins – Plug – 10-16mm clamping range – black coupling ring
Weight: 0.4 kg
Choose your connector: P19
Contact: CRIMP
Gland: M40SS

X

Multipin Connectors

P19-LM-C-M40B

Download Product PDFdownload pdf

  • P190346

  • P19-LM-C-M40B
    Line/Cable End – Male Crimp Pins – Plug – 22-32mm clamping range – black coupling ring
    Weight: 0.4 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M40B
P190346

P19-LM-C-M40B
Line/Cable End – Male Crimp Pins – Plug – 22-32mm clamping range – black coupling ring
Weight: 0.4 kg
Choose your connector: P19
Contact: CRIMP
Gland: M40B

X

Multipin Connectors

P19-LM-C-SPR-10

Download Product PDFdownload pdf

  • P190153

  • P19-LM-C-SPR-10
    Line/Cable End – Male Crimp Pins – Plug – 6 x 10mm max (1.5mm cable) black coupling ring
    Weight: 0.51 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: SPR10
P190153

P19-LM-C-SPR-10
Line/Cable End – Male Crimp Pins – Plug – 6 x 10mm max (1.5mm cable) black coupling ring
Weight: 0.51 kg
Choose your connector: P19
Contact: CRIMP
Gland: SPR10

X

Multipin Connectors

P19-PM-C

Download Product PDFdownload pdf

  • P190134

  • P19-PM-C
    Panel/Chassis Mount – Male Crimp Pins – Plug – black coupling ring
    Weight: 0.22 kg
    Choose your connector: P19
    Contact: CRIMP
P190134

P19-PM-C
Panel/Chassis Mount – Male Crimp Pins – Plug – black coupling ring
Weight: 0.22 kg
Choose your connector: P19
Contact: CRIMP

X

Multipin Connectors

P19-LM-C-SPR-12

Download Product PDFdownload pdf

  • P190126

  • P19-LM-C-SPR-12
    Line/Cable End – Male Crimp Pins – Plug – 6 x 12mm max (2.5mm cable) black coupling ring
    Weight: 0.51 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: SPR12
P190126

P19-LM-C-SPR-12
Line/Cable End – Male Crimp Pins – Plug – 6 x 12mm max (2.5mm cable) black coupling ring
Weight: 0.51 kg
Choose your connector: P19
Contact: CRIMP
Gland: SPR12

X

Multipin Connectors

P7-LM-C-M32

Download Product PDFdownload pdf

  • P190071

  • P7-LM-C-M32
    Line/Cable End – Male Crimp Pins – Plug – 11-21mm clamping range – blue coupling ring
    Weight:0.18 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M32
P190071

P7-LM-C-M32
Line/Cable End – Male Crimp Pins – Plug – 11-21mm clamping range – blue coupling ring
Weight:0.18 kg
Choose your connector: P19
Contact: CRIMP
Gland: M32

X

Multipin Connectors

P7-LM-S-M32

Download Product PDFdownload pdf

  • P190070

  • P7-LM-S-M32
    Line/Cable End – Male Solder Pins – Plug – 11-21mm clamping range – blue coupling ring
    Weight: 0.18 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M32
P190070

P7-LM-S-M32
Line/Cable End – Male Solder Pins – Plug – 11-21mm clamping range – blue coupling ring
Weight: 0.18 kg
Choose your connector: P19
Contact: SOLDER
Gland: M32

X

Multipin Connectors

P7-LM-S-M32-BK

Download Product PDFdownload pdf

  • P190143

  • P7-LM-S-M32-BK
    Line/Cable End – Male Solder Pins – Plug – 11-21mm clamping range – black coupling ring
    Weight: 0.18 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M32
P190143

P7-LM-S-M32-BK
Line/Cable End – Male Solder Pins – Plug – 11-21mm clamping range – black coupling ring
Weight: 0.18 kg
Choose your connector: P19
Contact: SOLDER
Gland: M32

X

Multipin Connectors

P7-LM-C-M32-BK

Download Product PDFdownload pdf

  • P190144

  • P7-LM-C-M32-BK
    Line/Cable End – Male Crimp Pins – Plug – 11-21mm clamping range – black coupling ring
    Choose your connector: P19
    Contact: CRIMP
    Gland: M32
P190144

P7-LM-C-M32-BK
Line/Cable End – Male Crimp Pins – Plug – 11-21mm clamping range – black coupling ring
Choose your connector: P19
Contact: CRIMP
Gland: M32

X

Multipin Connectors

P7-LF-C-M32

Download Product PDFdownload pdf

  • P190073

  • P7-LF-C-M32
    Line/Cable End – Female Crimp Pins – Socket – 11-21mm clamping range
    Weight: 0.17 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M32
P190073

P7-LF-C-M32
Line/Cable End – Female Crimp Pins – Socket – 11-21mm clamping range
Weight: 0.17 kg
Choose your connector: P19
Contact: CRIMP
Gland: M32

X

Multipin Connectors

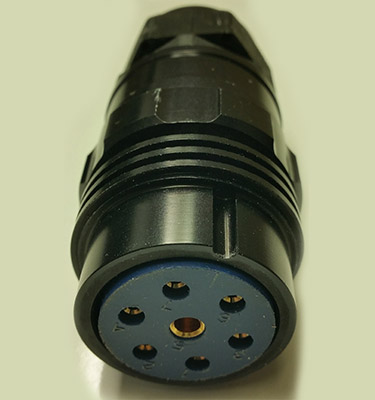

P7-LF-S-M32

Download Product PDFdownload pdf

  • P190072

  • P7-LF-S-M32
    Line/Cable End – Female Solder Pins – Socket – 11-21mm clamping range
    Weight: 0.17 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M32
P190072

P7-LF-S-M32
Line/Cable End – Female Solder Pins – Socket – 11-21mm clamping range
Weight: 0.17 kg
Choose your connector: P19
Contact: SOLDER
Gland: M32

X

Multipin Connectors

P7-PM-C

Download Product PDFdownload pdf

  • P190075

  • P7-PM-C
    Panel/Chassis Mount – Male Crimp Pins – Plug – blue coupling ring
    Weight: 0.12 kg
    Choose your connector: P19
    Contact: CRIMP
P190075

P7-PM-C
Panel/Chassis Mount – Male Crimp Pins – Plug – blue coupling ring
Weight: 0.12 kg
Choose your connector: P19
Contact: CRIMP

X

Multipin Connectors

P7-PM-S

Download Product PDFdownload pdf

  • P190074

  • P7-PM-S
    Panel/Chassis Mount – Male Solder Pins – Plug – blue coupling ring
    Weight: 0.12 kg
    Choose your connector: P19
    Contact: SOLDER
P190074

P7-PM-S
Panel/Chassis Mount – Male Solder Pins – Plug – blue coupling ring
Weight: 0.12 kg
Choose your connector: P19
Contact: SOLDER

X

Multipin Connectors

P7-PM-C-BK

Download Product PDFdownload pdf

  • P190147

  • P7-PM-C-BK
    Panel/Chassis Mount – Male Crimp Pins – Plug – black coupling ring
    Weight: 0.12 kg
    Choose your connector: P19
    Contact: CRIMP
P190147

P7-PM-C-BK
Panel/Chassis Mount – Male Crimp Pins – Plug – black coupling ring
Weight: 0.12 kg
Choose your connector: P19
Contact: CRIMP

X

Multipin Connectors

P7-PM-S-BK

Download Product PDFdownload pdf

  • P190164

  • P7-PM-S-BK
    Panel/Chassis Mount – Male Solder Pins – Plug – black coupling ring
    Weight: 0.12 kg
    Choose your connector: P19
    Contact: SOLDER
P190164

P7-PM-S-BK
Panel/Chassis Mount – Male Solder Pins – Plug – black coupling ring
Weight: 0.12 kg
Choose your connector: P19
Contact: SOLDER

X

Multipin Connectors

P7-PF-C

Download Product PDFdownload pdf

  • P190077

  • P7-PF-C
    Panel/Chassis Mount – Female Crimp Pins – Socket
    Weight: 0.11 kg
    Choose your connector: P19
    Contact: CRIMP
P190077

P7-PF-C
Panel/Chassis Mount – Female Crimp Pins – Socket
Weight: 0.11 kg
Choose your connector: P19
Contact: CRIMP

X

Multipin Connectors

P7-PF-S

Download Product PDFdownload pdf

  • P190076

  • P7-PF-S
    Panel/Chassis Mount – Female Solder Pins – Socket
    Weight: 0.11 kg
    Choose your connector: P19
    Contact: SOLDER
P190076

P7-PF-S
Panel/Chassis Mount – Female Solder Pins – Socket
Weight: 0.11 kg
Choose your connector: P19
Contact: SOLDER

X

Multipin Connectors

P3-LF-S-M32

Download Product PDFdownload pdf

  • P190180

  • P3-LF-S-M32
    Line/Cable End – Female Solder Pins – Socket – 11-21mm clamping range
    Weight: 0.17 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M32
P190180

P3-LF-S-M32
Line/Cable End – Female Solder Pins – Socket – 11-21mm clamping range
Weight: 0.17 kg
Choose your connector: P19
Contact: SOLDER
Gland: M32

X

Multipin Connectors

P3-LF-C-M32

Download Product PDFdownload pdf

  • P190181

  • P3-LF-C-M32
    Line/Cable End – Female Crimp Pins – Socket – 11-21mm clamping range
    Weight: 0.17 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M32
P190181

P3-LF-C-M32
Line/Cable End – Female Crimp Pins – Socket – 11-21mm clamping range
Weight: 0.17 kg
Choose your connector: P19
Contact: CRIMP
Gland: M32

X

Multipin Connectors

P3-LM-C-M32SS

Download Product PDFdownload pdf

  • P190177

  • P3-LM-C-M32SS
    Line/Cable End – Male Crimp Pins – Plug – 11-21mm clamping range – black coupling ring
    Weight: 0.18 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M32
P190177

P3-LM-C-M32SS
Line/Cable End – Male Crimp Pins – Plug – 11-21mm clamping range – black coupling ring
Weight: 0.18 kg
Choose your connector: P19
Contact: CRIMP
Gland: M32

X

Multipin Connectors

P3-LM-C-M32SS

Download Product PDFdownload pdf

  • P190439

  • P3-LM-C-M32SS
    Line/Cable End – Male Crimp Pins – Plug – 11-21mm clamping range – blue coupling ring
    Weight: 0.18 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M32
P190439

P3-LM-C-M32SS
Line/Cable End – Male Crimp Pins – Plug – 11-21mm clamping range – blue coupling ring
Weight: 0.18 kg
Choose your connector: P19
Contact: CRIMP
Gland: M32

X

Multipin Connectors

P3-LM-S-M32SS

Download Product PDFdownload pdf

  • P190435

  • P3-LM-S-M32SS
    Line/Cable End – Male Solder Pins – Plug – 11-21mm clamping range – blue coupling ring
    Weight: 0.18 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M32
P190435

P3-LM-S-M32SS
Line/Cable End – Male Solder Pins – Plug – 11-21mm clamping range – blue coupling ring
Weight: 0.18 kg
Choose your connector: P19
Contact: SOLDER
Gland: M32

X

Multipin Connectors

P3-LM-S-M32SS

Download Product PDFdownload pdf

  • P190176

  • P3-LM-S-M32SS
    Line/Cable End – Male Solder Pins – Plug – 11-21mm clamping range – black coupling ring
    Weight: 0.18 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M32
P190176

P3-LM-S-M32SS
Line/Cable End – Male Solder Pins – Plug – 11-21mm clamping range – black coupling ring
Weight: 0.18 kg
Choose your connector: P19
Contact: SOLDER
Gland: M32

X

Multipin Connectors

P3-PF-S

Download Product PDFdownload pdf

  • P190182

  • P3-PF-S
    Panel/Chassis Mount – Female Solder Pins – Socket
    Weight: 0.11 kg
    Choose your connector: P19
    Contact: SOLDER
P190182

P3-PF-S
Panel/Chassis Mount – Female Solder Pins – Socket
Weight: 0.11 kg
Choose your connector: P19
Contact: SOLDER

X

Multipin Connectors

P3-PF-C

Download Product PDFdownload pdf

  • P190183

  • P3-PF-C
    Panel/Chassis Mount – Female Crimp Pins – Socket
    Weight: 0.11 kg
    Choose your connector: P19
    Contact: CRIMP
P190183

P3-PF-C
Panel/Chassis Mount – Female Crimp Pins – Socket
Weight: 0.11 kg
Choose your connector: P19
Contact: CRIMP

X

Multipin Connectors

P3-PM-C

Download Product PDFdownload pdf

  • P190441

  • P3-PM-C
    Panel/Chassis Mount – Male Crimp Pins – Plug – blue coupling ring
    Weight: 0.12 kg
    Choose your connector: P19
    Contact: CRIMP
P190441

P3-PM-C
Panel/Chassis Mount – Male Crimp Pins – Plug – blue coupling ring
Weight: 0.12 kg
Choose your connector: P19
Contact: CRIMP

X

Multipin Connectors

P3-PM-C

Download Product PDFdownload pdf

  • P190179

  • P3-PM-C
    Panel/Chassis Mount – Male Crimp Pins – Plug – black coupling ring
    Weight: 0.12 kg
    Choose your connector: P19
    Contact: CRIMP
P190179

P3-PM-C
Panel/Chassis Mount – Male Crimp Pins – Plug – black coupling ring
Weight: 0.12 kg
Choose your connector: P19
Contact: CRIMP

X

Multipin Connectors

P3-PM-S

Download Product PDFdownload pdf

  • P190178

  • P3-PM-S
    Panel/Chassis Mount – Male Solder Pins – Plug – black coupling ring
    Weight: 0.12 kg
    Choose your connector: P19
    Contact: CRIMP
P190178

P3-PM-S
Panel/Chassis Mount – Male Solder Pins – Plug – black coupling ring
Weight: 0.12 kg
Choose your connector: P19
Contact: CRIMP

X

Multipin Connectors

P3-PM-S

Download Product PDFdownload pdf

  • P190440

  • P3-PM-S
    Panel/Chassis Mount – Male Solder Pins – Plug – blue coupling ring
    Weight: 0.12 kg
    Choose your connector: P19
    Contact: SOLDER
Socapex 19 Pin Connectors from PHASE 3
P190440

P3-PM-S
Panel/Chassis Mount – Male Solder Pins – Plug – blue coupling ring
Weight: 0.12 kg
Choose your connector: P19
Contact: SOLDER

X

Multipin Connectors

P5-LF-S-M32

Download Product PDFdownload pdf

  • P190188

  • P5-LF-S-M32
    Line/Cable End – Female Solder Pins – Socket – 11-21mm clamping range
    Weight: 0.17 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M32
P190188

P5-LF-S-M32
Line/Cable End – Female Solder Pins – Socket – 11-21mm clamping range
Weight: 0.17 kg
Choose your connector: P19
Contact: SOLDER
Gland: M32

X

Multipin Connectors

P5-LF-C-M32

Download Product PDFdownload pdf

  • P190189

  • P5-LF-C-M32
    Line/Cable End – Female Crimp Pins – Socket – 11-21mm clamping range
    Weight: 0.17 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M32
P190189

P5-LF-C-M32
Line/Cable End – Female Crimp Pins – Socket – 11-21mm clamping range
Weight: 0.17 kg
Choose your connector: P19
Contact: CRIMP
Gland: M32

X

Multipin Connectors

P5-LM-C-M32

Download Product PDFdownload pdf

  • P190442

  • P5-LM-C-M32
    Line/Cable End – Male Crimp Pins – Plug – 11-21mm clamping range – blue coupling ring
    Weight: 0.18 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M32
P190442

P5-LM-C-M32
Line/Cable End – Male Crimp Pins – Plug – 11-21mm clamping range – blue coupling ring
Weight: 0.18 kg
Choose your connector: P19
Contact: CRIMP
Gland: M32

X

Multipin Connectors

P5-LM-C-M32

Download Product PDFdownload pdf

  • P190185

  • P5-LM-C-M32

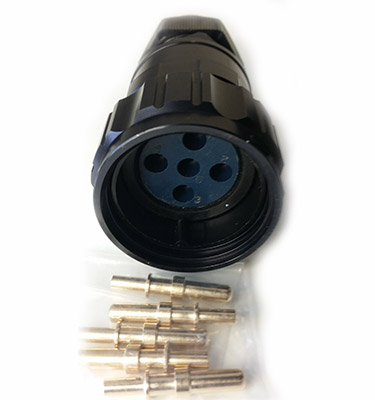

    Line/Cable End – Male Crimp Pins – Plug – 11-21mm clamping range – black coupling ring
    Weight: 0.18 kg
    Choose your connector: P19
    Contact: CRIMP
    Gland: M32
P190185

P5-LM-C-M32
Line/Cable End – Male Crimp Pins – Plug – 11-21mm clamping range – black coupling ring
Weight: 0.18 kg
Choose your connector: P19
Contact: CRIMP
Gland: M32

X

Multipin Connectors

P5-LM-S-M32

Download Product PDFdownload pdf

  • P190434

  • P5-LM-S-M32
    Line/Cable End – Male Solder Pins – Plug – 11-21mm clamping range – blue coupling ring
    Weight: 0.18 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M32
P190434

P5-LM-S-M32
Line/Cable End – Male Solder Pins – Plug – 11-21mm clamping range – blue coupling ring
Weight: 0.18 kg
Choose your connector: P19
Contact: SOLDER
Gland: M32

X

Multipin Connectors

P5-LM-S-M32

Download Product PDFdownload pdf

  • P190184

  • P5-LM-S-M32
    Line/Cable End – Male Solder Pins – Plug – 11-21mm clamping range – black coupling ring
    Weight: 0.18 kg
    Choose your connector: P19
    Contact: SOLDER
    Gland: M32
P190184

P5-LM-S-M32
Line/Cable End – Male Solder Pins – Plug – 11-21mm clamping range – black coupling ring
Weight: 0.18 kg
Choose your connector: P19
Contact: SOLDER
Gland: M32

X

Multipin Connectors

P5-PF-S

Download Product PDFdownload pdf

  • P190190

  • P5-PF-S
    Panel/Chassis Mount – Female Solder Pins – Socket
    Weight: 0.11 kg
    Choose your connector: P19
    Contact: SOLDER
P190190

P5-PF-S
Panel/Chassis Mount – Female Solder Pins – Socket
Weight: 0.11 kg
Choose your connector: P19
Contact: SOLDER

X

Multipin Connectors

P5-PF-C

Download Product PDFdownload pdf

  • P190191

  • P5-PF-C
    Panel/Chassis Mount – Female Crimp Pins – Socket
    Weight: 0.11 kg
    Choose your connector: P19
    Contact: CRIMP
P190191

P5-PF-C
Panel/Chassis Mount – Female Crimp Pins – Socket
Weight: 0.11 kg
Choose your connector: P19
Contact: CRIMP

X

Multipin Connectors

P5-PM-C

Download Product PDFdownload pdf

  • P190187

  • P5-PM-C

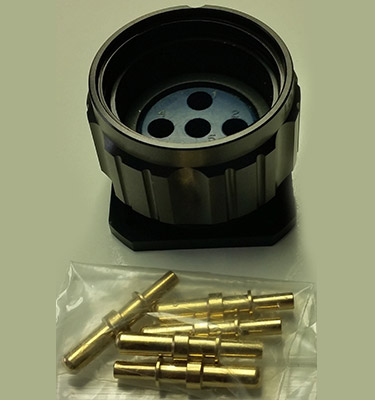

    Panel/Chassis Mount – Male Crimp Pins – Plug – black coupling ring
    Weight: 0.12 kg
    Choose your connector: P19
    Contact: CRIMP
P190187

P5-PM-C
Panel/Chassis Mount – Male Crimp Pins – Plug – black coupling ring
Weight: 0.12 kg
Choose your connector: P19
Contact: CRIMP

X

Multipin Connectors

P5-PM-C

Download Product PDFdownload pdf

  • P190444

  • P5-PM-C
    Panel/Chassis Mount – Male Crimp Pins – Plug – blue coupling ring
    Weight: 0.12 kg
    Choose your connector: P19
    Contact: CRIMP
P190444

P5-PM-C
Panel/Chassis Mount – Male Crimp Pins – Plug – blue coupling ring
Weight: 0.12 kg
Choose your connector: P19
Contact: CRIMP

X

Multipin Connectors

P5-PM-S

Download Product PDFdownload pdf

  • P190186

  • P5-PM-S-SS-BK-NU-BK-UL
    Panel/Chassis Mount – Male Solder Pins – Plug – black coupling ring
    Weight: 0.12 kg
    Choose your connector: P19
    Contact: SOLDER
P190186

P5-PM-S-SS-BK-NU-BK-UL
Panel/Chassis Mount – Male Solder Pins – Plug – black coupling ring
Weight: 0.12 kg
Choose your connector: P19
Contact: SOLDER

X

Multipin Connectors

P5-PM-S

Download Product PDFdownload pdf

  • P190443

  • P5-PM-S-SS-BK-NU-UL
    Panel/Chassis Mount – Male Solder Pins – Plug – blue coupling ring
    Weight: 0.12 kg
    Choose your connector: P19
    Contact: SOLDER
P190443

P5-PM-S-SS-BK-NU-UL
Panel/Chassis Mount – Male Solder Pins – Plug – blue coupling ring
Weight: 0.12 kg
Choose your connector: P19
Contact: SOLDER
