Portable Electrical Power Distribution

Call about our Products (800) 227-6784

Choose From the Products Below

Auxiliary Power Distribution

Non Breakered Stringer Boxes

Small Frame, Non-Breakered Stringer Box

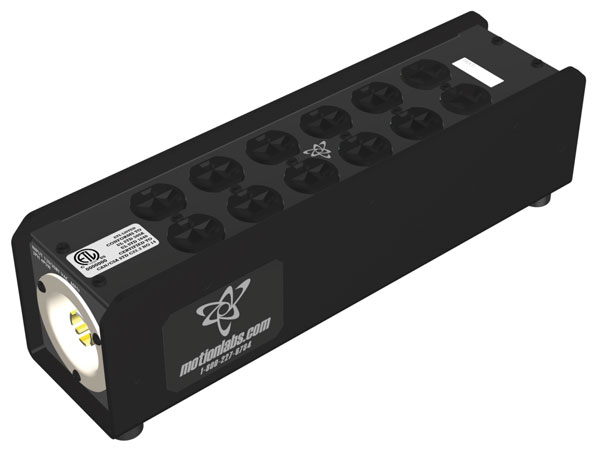

Motion Labs small frame stringer boxes provide break-out style power distribution at locations where an entire rack is not necessary or practical. In most applications, they are designed without the need for current reduction. They can be spread out across a convention hall floor, mounted in a truss structure, or even used on a bench top for temporary applications. Although typically used at the end of the line in a branch circuit because of their small size, they are capable of delivering a significant amount of power for a variety of applications.

The non-breakered stringer box is the smaller frame unit in our product line with two compact sizes.


The 1150 series is15.5” L x 3.75” W x 4.5” Hand the 1151 series is 12.5” L x 3.75” W x 4.5” H.They are manufactured from .090” aluminum with a variety of finishes available and use a rugged Boltaron 4335 extruded acrylic PVC alloy shell chosen for both its durability as well as flame rating. Units can be fitted with rubber feet or truss mount clamps.

Quad Box


Motion Labs also provides a solution for power distribution on a very small scale. These units come in an extruded aluminum 3”X 4”box with rubber end plates or 3”X 4” full rubber box. They are designed to give you duplex outlet power and have input and throughput powerCON connections to allow them to be strung together.

Power with confidence, using the most trusted name in portable power distribution


Our Product Line for Non Breakered Stringer Boxes

X

Non Breakered Stringer Boxes

Non-Breakered Stringer

Download Product PDFdownload pdf

  • 1150-02-151-404-0001

  • Stringer Box, P19 In/Thru 6x Stage Pin, Truss Mount. 15.5L x 3.75 W x 4.5 H, ETL Listed
1150-02-151-404-0001

Stringer Box, P19 In/Thru 6x Stage Pin, Truss Mount. 15.5L x 3.75 W x 4.5 H, ETL Listed

X

Non Breakered Stringer Boxes

Non-Breakered Stringer

Download Product PDFdownload pdf

  • 1150-01-151-404-0001

  • Stringer Box, P19 In/Thru, 6x Stage Pin, 15.5L x 3.75 W x 4.5 H, ETL Listed
1150-01-151-404-0001

Stringer Box, P19 In/Thru, 6x Stage Pin, 15.5L x 3.75 W x 4.5 H, ETL Listed

X

Non Breakered Stringer Boxes

Non-Breakered Stringer

Download Product PDFdownload pdf

  • 1150-02-151-408-0002

  • Stringer Box, P19 120V In/Thru, 6x PowerCon 20A 120v Out, w/Truss Clamp. 15.5L x 3.75W x 4.5H, ETL Listed
1150-02-151-408-0002

Stringer Box, P19 120V In/Thru, 6x PowerCon 20A 120v Out, w/Truss Clamp. 15.5L x 3.75W x 4.5H, ETL Listed

X

Non Breakered Stringer Boxes

Non-Breakered Stringer

Download Product PDFdownload pdf

  • 1150-01-151-408-0002

  • ETL Listed, 19Pin In/Thru, 6 x 20A Powercon, Fully Enclosed
    15.5"L x 3.75"W x 4.5"H
1150-01-151-408-0002

ETL Listed, 19Pin In/Thru, 6 x 20A Powercon, Fully Enclosed
15.5"L x 3.75"W x 4.5"H

X

Non Breakered Stringer Boxes

Non-Breakered Stringer

Download Product PDFdownload pdf

  • 1150-02-151-401-0005

  • Stringer Box, P19 120V In/Thru, 6X Edison Duplex, w/ Truss Clamp. 15.5L x 3.75W x 4.5H, ETL Listed
1150-02-151-401-0005

Stringer Box, P19 120V In/Thru, 6X Edison Duplex, w/ Truss Clamp. 15.5L x 3.75W x 4.5H, ETL Listed

X

Non Breakered Stringer Boxes

Non-Breakered Stringer

Download Product PDFdownload pdf

  • 1150-01-151-401-0005

  • ETL Listed, 19Pin In/Thru, 6 x 20A Duplex, Fully Enclosed
    15.5"L x 3.75"W x 4.5"H
1150-01-151-401-0005

ETL Listed, 19Pin In/Thru, 6 x 20A Duplex, Fully Enclosed
15.5"L x 3.75"W x 4.5"H

X

Non Breakered Stringer Boxes

Non-Breakered Stringer

Download Product PDFdownload pdf

  • 1150-01-700-401-0005

  • Stringer Box, P19 In, 6 x 20A Edison Duplex Out, 15.5L x 3.75W x 4.5H, ETL Listed
1150-01-700-401-0005

Stringer Box, P19 In, 6 x 20A Edison Duplex Out, 15.5L x 3.75W x 4.5H, ETL Listed

X

Non Breakered Stringer Boxes

Non-Breakered Stringer

Download Product PDFdownload pdf

  • 1150-02-106-400-0701

  • Stringer Box, L21-30 In/Thru X 3X L6-30 Out, w/Truss Clamp. 15.5L x 3.75W x 4.5H, ETL Listed
1150-02-106-400-0701

Stringer Box, L21-30 In/Thru X 3X L6-30 Out, w/Truss Clamp. 15.5L x 3.75W x 4.5H, ETL Listed

X

Non Breakered Stringer Boxes

Non-Breakered Stringer

Download Product PDFdownload pdf

  • 1150-01-103-401-0002

  • Stringer Box, L21-20 In/Thru, 6x 20A Edison Duplex Out- Top Facing, 15.5L x 3.75W x 4.5H, ETL Listed
1150-01-103-401-0002

Stringer Box, L21-20 In/Thru, 6x 20A Edison Duplex Out- Top Facing, 15.5L x 3.75W x 4.5H, ETL Listed

X

Non Breakered Stringer Boxes

Non-Breakered Stringer

Download Product PDFdownload pdf

  • 1150-01-702-401-0002

  • Stringer Box, L21-20 In, 6 Edison Duplex Out, 15.5L x 3.75W x 4.5H, ETL Listed
1150-01-702-401-0002

Stringer Box, L21-20 In, 6 Edison Duplex Out, 15.5L x 3.75W x 4.5H, ETL Listed

X

Non Breakered Stringer Boxes

Non-Breakered Stringer

Download Product PDFdownload pdf

  • 1110-EE-D6

  • Stringer Box, L21-20 In, 6x Edison Duplex Out, 15.5L x 3.75W x 4.5H, ETL Listed
1110-EE-D6

Stringer Box, L21-20 In, 6x Edison Duplex Out, 15.5L x 3.75W x 4.5H, ETL Listed

X

Non Breakered Stringer Boxes

Non-Breakered Stringer

Download Product PDFdownload pdf

  • 1150-01-200-408-0001

  • Stringer Box, 20A PowerCon In (BLU) /Thru(GRY), 8 x 20A PowerCon Out (GRY),15.5L x 3.75 W x 4.5 H, ETL Listed
1150-01-200-408-0001

Stringer Box, 20A PowerCon In (BLU) /Thru(GRY), 8 x 20A PowerCon Out (GRY),15.5L x 3.75 W x 4.5 H, ETL Listed
